Eaton UTL1103G1S20AWG Power and Control Supply - IP68
Part Number: UTL1103G1S20AWG
Quick Summary
UTL1103G1S20AWG is a compact power and control supply for in-line, panel-ready connections in industrial automation. This design helps eliminate wiring complexity and reduces panel footprint, addressing common pain points like connector wear, downtime, and costly maintenance in demanding environments. It carries IP68 sealing and adheres to IEC 61984 and UL 1977 standards, aligning with robust safety and regulatory expectations. The solution pairs a compact 28.6 mm footprint with a 16 A rating, delivering reliable power and control signals where space is at a premium. In addition, its 4-contact inline receptacle and first mate last break capability streamline assembly and field servicing, while supporting a range of actuation and sensing applications.
Product Information
Extended Description

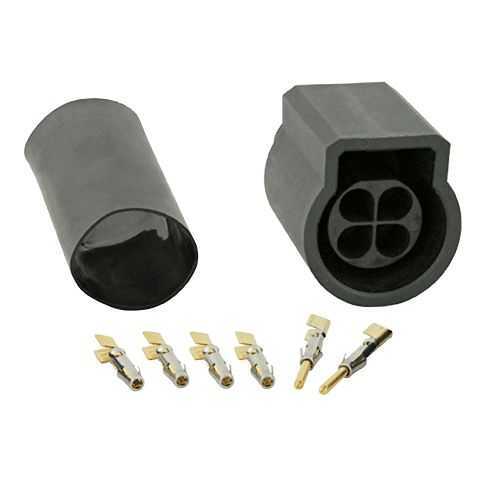

UTL1103G1S20AWG Eaton: Evaluation kit, with female in line receptacle and contacts, 3G1 layout; UTL1103G1S20AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL1103G1S20AWG
Product Length/Depth
28.6 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
14.3 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against oil Resistant against basic bath Resistant against gasoline Resistant against acid bath
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
Only to be overmolded
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
In-Line Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature → 4 contact inline receptacle with four cavities and a 16 A current rating (UL/IEC). Business Impact → Enables multi-circuit power and control wiring in a compact footprint, reducing harness length and termination labor. Application → Fits in-line connections to sensors, actuators, and small controllers on automation equipment. Feature → IP68 protection and robust housing materials (polyamide insert, plastic shell) provide reliable operation in washdown, oil, and chemical exposure. Business Impact → Increases uptime and lowers maintenance costs in harsh environments. Application → Suitable for conveyors, packaging lines, and outdoor machinery. Feature → 28.6 mm footprint with a light 14.3 g weight. Business Impact → Minimizes enclosure size and overall system weight, improving install flexibility and reducing support costs. Application → Ideal for space-constrained panels and mobile automation modules. Feature → 3G1 layout with ground cavity and first mate last break capability. Business Impact → Simplifies safe maintenance and circuit isolation, reducing downtime during servicing. Application → Useful in modular harnessing and plug-and-play installations. Feature → 1000 mating cycles and Push-Pull coupling. Business Impact → Predictable lifecycle and fast, safe connect/disconnect, lowering replacement and downtime costs. Application → Frequent maintenance scenarios and rapidly assembled lines. Feature → Operating temperature range −40 to 105 °C and environmental resistance (UV, mineral oil, oil, basic and acid bath). Business Impact → Supports reliability across diverse climates and industrial fluids, extending equipment life. Application → Automotive, energy, and heavy manufacturing environments. Feature → Receptacle type In-Line Receptacle; Mating cycles 1000; Salt spray 1000 hours; Compliance with RoHS/REACH. Business Impact → Ensures regulatory alignment and long-term durability in corrosive environments. Application → Industrial automation harnesses and control circuits requiring robust, compliant interconnects.
