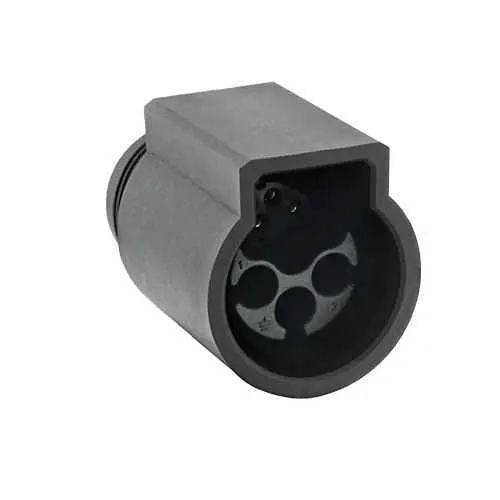

Eaton UTL1122G1W5P In-Line Receptacle - IP68 Sealed
Part Number: UTL1122G1W5P
Quick Summary
The Eaton Souriau UTL1122G1W5P is a power and control supply for rugged inline connections in industrial automation. When panel space is tight and harsh environments threaten uptime, standard connectors can fail seals or wear prematurely. This design complies with IEC 61984 and UL 1977 and features IP68 protection, RoHS and REACH considerations for longevity in the field. By delivering a compact 2G1W5 layout with robust sealing, it enables faster installation and reduced maintenance while ensuring dependable power and signal transmission in demanding applications.
Product Information
Extended Description
UTL1122G1W5P Eaton: Male in-line receptacle, 2G1W5 layout; UTL1122G1W5P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL1122G1W5P
Product Length/Depth
45.5 mm
Product Height
31.9 mm
Product Width
28.8 mm
Product Weight
20 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Environmental resistance
Resistant against basic bath Resistant against gasoline Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W5
Shell material
Plastic
Shell size
12
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
In-Line Receptacle
Number Of Contacts
8
Number of cavity #16
3
Number of cavity #20
5
Salt spray
1000 hour
Feature → Business Impact → Application: 16 A current rating with a 500 V IEC / 600 V UL test voltage supports higher-load machinery and robotics without frequent replacements, reducing downtime and energy waste in conveyor systems and CNC machines. Feature → 8 contacts in a 2G1W5 layout with male pins and crimp capability improves mating reliability and fast field assembly, enabling rapid deployment in automated lines and control panels. Feature → Push-Pull coupling and inline receptacle design deliver secure mating and easy disconnection for serviceability in robotics cells and packaging lines, minimizing maintenance windows. Feature → IP68 and environmental resistance (oil, gasoline, mineral oil, UV) extend life in exposure-prone environments, lowering total cost of ownership in outdoor enclosures or wash-down areas. Feature → Insert material polyamide and shell material plastic provide chemical and temperature resilience, supporting operation from -40 °C to 105 °C in automotive, food-grade processing, and material handling environments. Feature → 1000 mating cycles, salt spray resistance, and RoHS/REACH compliance add confidence for longevity, regulator audits, and ongoing OEM certification processes. Compatibility and installation are aided by a 45.5 mm depth, 31.9 mm height, and 28.8 mm width footprint, with a ground cavity option and overmolded connector alternatives for streamlined integration in machine builders’ catalogs.
