Eaton UTL1122G1W5S In-Line Receptacle - IP68
Part Number: UTL1122G1W5S
Quick Summary
Eaton UTL1122G1W5S power and control supply in-line receptacle powers rugged industrial automation connections. Engineers and technicians often struggle with moisture ingress, harsh washdowns, and unplanned downtime that disrupt production. This UTL series member delivers IP68 protection, a wide operating temperature range (-40 to 105 C), and robust crimp contacts with a 2G1W5 layout to ensure reliable, long-life connections. It complies with UL 1977 and IEC 61984, and supports RoHS and REACH requirements, giving procurement teams regulatory confidence. Designed for field visibility and quick mating, the push-pull coupling and 8-contact configuration simplify wiring schemes while reducing installation time. For OEMs and integrators, it translates into lower spare parts costs, shorter commissioning, and improved uptime in demanding environments.
Product Information
Extended Description

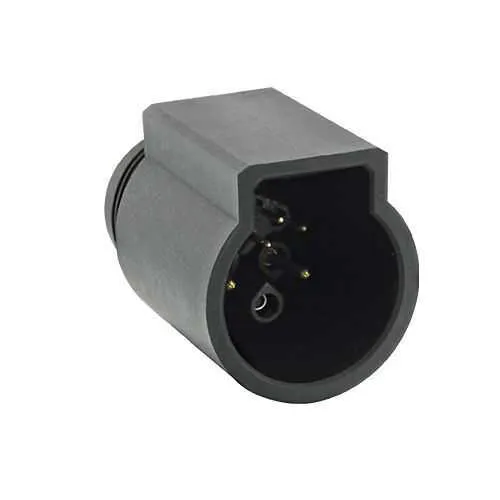

UTL1122G1W5S Eaton: Female in-line receptacle, 2G1W5 layout; UTL1122G1W5S
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL1122G1W5S
Product Length/Depth
45.5 mm
Product Height
31.9 mm
Product Width
28.8 mm
Product Weight
20 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Environmental resistance
Resistant against acid bath Resistant against gasoline Resistant against basic bath Resistant against oil Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
Only to be overmolded
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W5
Shell material
Plastic
Shell size
12
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
In-Line Receptacle
Number Of Contacts
8
Number of cavity #16
3
Number of cavity #20
5
Salt spray
1000 hour
Feature: 16 A current rating (UL/IEC) enables handling typical machine and control loads without oversized connectors. Business Impact: Reduces the number of distinct components in a harness and minimizes wiring complexity, cutting installation time and inventory. Application: Industrial automation panels and robotics where reliable power and control signals run through one connector. Feature: IP68 protection and wide operating temperature (-40 to 105 C) ensure seal integrity and performance in washdown, dusty, or outdoor environments. Business Impact: Lowers maintenance cycles and failure rates, boosting overall equipment effectiveness (OEE). Application: Food processing, outdoors, and harsh manufacturing floors. Feature: Push-Pull coupling with first mate last break capability accelerates mating/demating and improves leverage during servicing. Business Impact: Faster line changeovers and reduced downtime for maintenance. Application: High-changeover automations and serviceable field installations. Feature: 8 contacts in a 2G1W5 layout with crimp contact delivery and ground cavity option provides compact, versatile signal/power routing. Business Impact: Supports mixed loads in a single connector, improving wiring density and reliability. Application: Control cabinets and distributed drive systems. Feature: Receptacle type, crimp contact, polyamide insert, plastic shell, and 2G1W5 layout deliver robust mechanical and chemical resistance. Business Impact: Ensures longevity in challenging environments and eases regulatory compliance. Application: OEM wiring harnesses and modular machinery where durability matters. Feature: Mating cycles of 1000 and salt spray resistance indicate durable, repeated use without early wear. Business Impact: Reduces maintenance intervals and spare parts consumption. Application: Heavy-duty industrial equipment with frequent connections.
