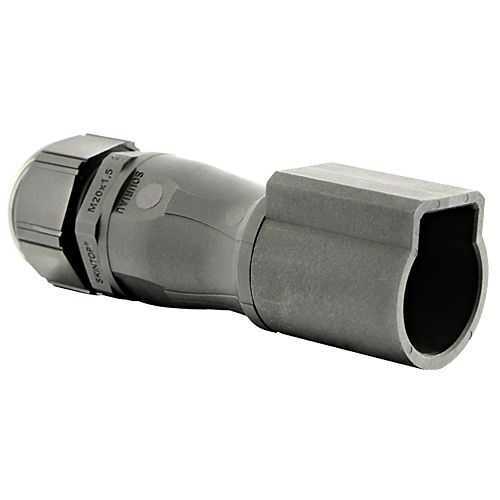

Eaton UTL1JC103G1P In-Line Receptacle - IP68 Sealing
Part Number: UTL1JC103G1P
Quick Summary
Eaton UTL1JC103G1P is an inline receptacle delivering UL/IEC power and control supply for industrial automation. Engineers often struggle with secure connections in tight spaces, where miswiring and awkward terminations cause downtime. It delivers IP68 sealing and compliance to UL 1977 and IEC 61984, plus RoHS/REACH and UL94 V0, ensuring robust performance in harsh environments. The design supports fast field installation and reliable maintenance, delivering measurable cost savings and improved equipment uptime. This solution also aligns with common industrial connector ecosystems, reinforcing compatibility for field upgrades and panel integrations.
Product Information
Extended Description
UTL1JC103G1P Eaton: Male in line receptacle, with cable gland backshell, 4 cavities; UTL1JC103G1P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL1JC103G1P
Product Length/Depth
92.2 mm
Product Height
28.6 mm
Product Width
20 mm
Product Weight
35 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Environmental resistance
Resistant against gasoline Resistant against basic bath Resistant against oil Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
In-Line Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature: Four-cavity inline receptacle with 4 contacts delivers a compact, high-density interface. Business Impact: Reduces panel footprint while handling standard 16 A loads, improving wiring efficiency and reliability in control cabinets. Application: Ideal for 4-circuit power and control distribution in automated machinery. Feature: IP68 sealing, sealing gland backshell, and resistant materials. Business Impact: Enables operation in washdown, oil- and chemical-exposed environments, lowering maintenance frequency and replacement costs. Application: Food processing lines, outdoor equipment, and offshore panels. Feature: Push-Pull coupling and straight backshell angle with a ground cavity layout. Business Impact: Easy, intuitive mating and secure grounding, minimizing installation errors and downtime. Application: High-availability automation installations with frequent maintenance cycles. Feature: 1000 mating cycles, 16 A current rating, and voltage ratings up to 600 V UL / 500 V IEC. Business Impact: Long service life and compatibility with common industrial loads, reducing replacement and rework. Application: Robotics, packaging lines, and programmable logic controller (PLC) driven systems. Feature: Crimp contact, polyamide insert, and a durable plastic shell. Business Impact: Reliable termination and resistance to environmental stress, lowering warranty claims. Application: Field assemblies and maintenance bays requiring robust, field-serviceable connectors. Feature: Delivered with connector option and 3G1 layout. Business Impact: Simplifies procurement and integration with existing Souriau UTL ecosystems, accelerating deployment. Application: System upgrades and new machine builds where Souriau UTL is the standard.
Get a Quick Quote for a Eaton UTL1JC103G1P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL1JC103G1P?
Enquire Now
FAQs
The UTL1JC103G1P is designed to integrate with Souriau UTL series connectors, featuring a 3G1 layout and 4-contact configuration. It uses a sealing gland backshell and can be mated with standard Souriau inline receptacles. Ensure the mating interface matches the 3G1 layout and that the backshell is secured to maintain IP68 protection during field assembly. This simplifies upgrades and minimizes special tooling needs.
Key specs include a 16 A current rating for both UL and IEC, and voltage ratings of 600 V UL and 500 V IEC. The connector is IP68 rated for ingress protection, supports 4 contacts in a 4-cavity configuration, and offers a mating cycle life of around 1000. These parameters ensure reliable power and control delivery in demanding automation environments.
Yes. The UTL1JC103G1P features IP68 sealing, a sealing gland backshell, and materials chosen for resistance to oil, basic baths, acids, and UV exposure. It is designed for harsh environments, preserving performance in washdown areas, outdoor installations, and equipment exposed to chemical exposure, while meeting RoHS/REACH requirements.
This receptacle aligns with UL 1977 and IEC 61984 standards, with additional conformance to RoHS, REACH, and UL94 V0 flame rating. Compliance supports installation in safety-critical automation panels and ensures compatibility with industry regulations. Always verify local regulatory requirements for your specific application, especially in food processing or outdoor installations.
The combination of first mate last break capability, push-pull coupling, and 1000 mating cycles reduces maintenance downtime and rework during field service. With a 16 A rating and IP68 protection, you gain higher reliability in demanding environments, lowering spare parts consumption and improving machine uptime, which translates to measurable total cost of ownership improvements.
