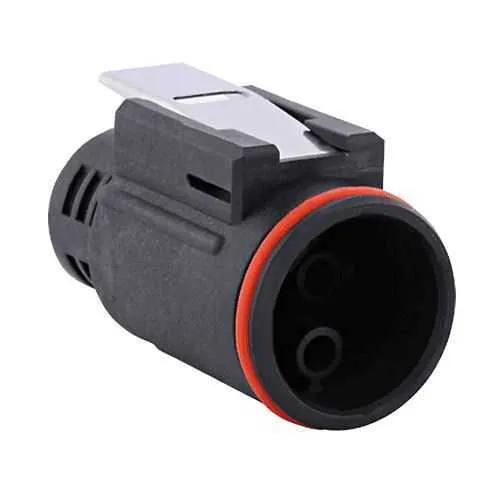

Eaton UTL6102G1W3P Power and Control Plug - IP68
Part Number: UTL6102G1W3P
Quick Summary
Eaton UTL6102G1W3P is a power and control plug for UL/IEC connectivity in industrial equipment. The primary function is to provide a robust, field-matable connection that supports both power and control signals in challenging environments. Engineers encounter downtime and reliability risks when connectors fail due to ingress, misalignment, or wear; this part mitigates those issues with a sealed IP68 design and durable materials. The unit complies with IEC 61984 and UL 1977, and it carries IP68 protection for immersion resistance, plus RoHS and UL94 V0 flame rating for safety. Designed for Souriau UTL series integrations, it fits the 2G1W3 layout and benefits from first mate last break and crimp contact options, delivering reliable automation panel connections and serviceability in harsh environments. This combination supports faster maintenance, longer service life, and lower lifecycle costs for automated systems.
Product Information
Extended Description
UTL6102G1W3P Eaton: Male plug, 2G1W3 layout; UTL6102G1W3P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6102G1W3P
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
12 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Environmental resistance
Resistant against gasoline Resistant against mineral oil Resistant against basic bath Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W3
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Salt spray
1000 hour
Feature: IP68 rated plug with push-pull coupling and 2G1W3 layout. Business Impact: Superior ingress protection with reliable mating in washdown and outdoor settings, reducing unplanned downtime. Application: Use in harsh automation environments, such as conveyors and mobile equipment, where moisture and dust pose risks. Feature: 6 contacts with crimp delivery, arranged for a 2G1W3 layout. Business Impact: Simplifies harness design and installation while delivering clean, compact connections. Application: Power and control circuits in industrial panels and robotics. Feature: 16 A current rating and 600 V UL / 500 V IEC voltage ratings. Business Impact: Supports standard industrial drives and control gear, enabling safe, high-performance operation. Application: Motors, drives, and PLC power rails. Feature: Mating cycles of 1000 and straight plug design with first mate last break. Business Impact: Improves field serviceability and replacement cycles, lowering maintenance costs. Application: Frequent connects/disconnects in automation cells. Feature: Ground cavity with robust insert materials (polyamide) and RoHS/UL94 V0 compliance. Business Impact: Long-term environmental resistance and regulatory compliance, reducing rework. Application: Automotive, packaging, and process automation environments. Feature: Environmental resistance to gasoline, mineral oil, basic/acid baths, and UV exposure. Business Impact: Enables exterior or washdown installations without performance loss. Application: Outdoor control cabinets and marine or heavy-industrial settings.
Get a Quick Quote for a Eaton UTL6102G1W3P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6102G1W3P?
Enquire Now
FAQs
UTL6102G1W3P complies with IEC 61984 and UL 1977, with IP68 protection. This means it is designed for immersion protection and robust performance in wet or washdown environments, while meeting key regulatory requirements for safety and interoperability in industrial assemblies.
Choose the straight plug variant in a 2G1W3 layout for compact panel harnesses. Ensure crimp contacts are properly seated and that the ground cavity is used where grounding is required. The first mate last break feature helps simplify field maintenance and reduces mis-mating during assembly.
Yes. With a mating cycle rating of 1000 and IP68 ingress protection, it is well-suited for high-cycle automation tasks and environments exposed to dust, water, or washdown, enabling longer service life and lower replacement costs.
Applications include power and control circuits in robotics, conveyors, and motor drives within automation cells. The ratings support typical industrial loads while maintaining safe operating margins and regulatory compliance.
The 1000-cycle rating, polyamide shell, and RoHS/UL94 V0 compliance contribute to predictable maintenance schedules and reduced lifecycle costs. The design also supports quick replacement and straightforward overmolded cable integration to minimize downtime.
