Eaton UTL6102G1W3P14AWG Power & Control Supply - IP68
Part Number: UTL6102G1W3P14AWG
Quick Summary
The Eaton Souriau UTL series uL/IEC power and control supply enables reliable power and control for rugged industrial equipment. Field wiring and field maintenance can be disruptive; this solution minimizes downtime with a compact, robust design and quick-mate capabilities. It adheres to UL 1977 and IEC 61984 compliance, while RoHS and REACH transparency support modern regulatory needs and sustainability goals. The 2G1W3 layout, ground cavity, and 24 mm footprint deliver streamlined installation, especially for panel builders and OEMs seeking high reliability in harsh environments. By combining a strong IP68 seal with durable materials, this connector proves valuable for automated machinery, outdoor installations, and washdown-ready control systems.
Product Information
Extended Description

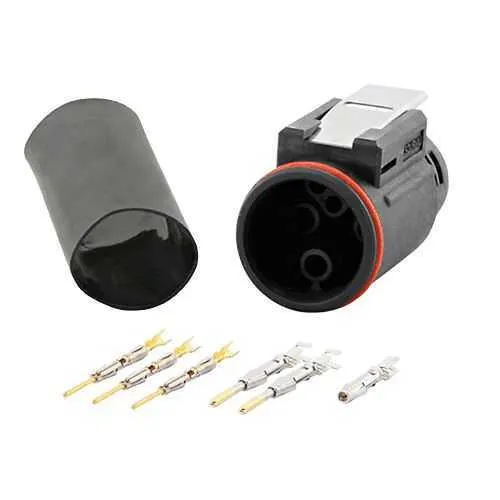

UTL6102G1W3P14AWG Eaton: Evaluation kit, with male plug and contacts, 2G1W3 layout; UTL6102G1W3P14AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6102G1W3P14AWG
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
12 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against acid bath Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W3
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Salt spray
1000 hour
Feature → Business Impact → Application: The UTL6102G1W3P14AWG delivers 16 A current rating under UL and IEC standards, ensuring consistent power delivery to motors, controllers, and I/O modules while supporting safe operating margins in demanding environments. This translates to reduced conduit runs, fewer power-related faults, and lower maintenance costs in automated lines and robotics workcells. Feature → Business Impact → Application: Its IP68 sealing and environmental resistance protect against acid/base baths, oils, UV exposure, and washdown cycles, extending service life and decreasing replacement intervals in food, beverage, and chemical processing lines. Feature → Business Impact → Application: The 2G1W3 layout with Straight Plug and First Mate Last Break capability simplifies installation, enabling faster panel build-outs and easier field rewiring without sacrificing reliability in equipment enclosures. Feature → Business Impact → Application: Crimp contact delivery with six total positions (three #16 and three #20 cavities) and a Push-Pull coupling supports quick, secure mating, reducing downtime during maintenance in conveyor systems and machine taps. Feature → Business Impact → Application: Mating cycles rated at 1000 and operating temperature range of -40 °C to 105 °C provide confidence for both cold-start and high-temperature operation, ensuring stability in outdoor, automotive, and industrial automation environments. Feature → Business Impact → Application: Polyamide insert and plastic shell deliver a lightweight yet durable housing that resists oil, gasoline, and mineral oil exposure, supporting long service life in windy outdoor installations or workshop environments. Feature → Business Impact → Application: Fitted with a ground cavity and UL/IEC-compliant ratings, this plug promotes safer grounding schemes for control circuits and reduces the risk of electrical faults in complex automation panels. Feature → Business Impact → Application: Availability of a RoHS and REACH compliant solution with UL94 V0 flammability rating helps OEMs meet sustainability and safety standards while maintaining compact footprints in compact control cabinets.
Get a Quick Quote for a Eaton UTL6102G1W3P14AWG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6102G1W3P14AWG?
Enquire Now
FAQs
Installation begins with selecting the 24 mm footprint location, ensuring panel cutouts meet the 24 mm depth and height. Use the straight plug and crimp contacts to assemble the six-position connector (three #16 and three #20 cavities). Employ the first mate last break capability to sequence the power and control lines for preventive maintenance, and verify IP68 sealing after mating to guarantee washdown readiness.
The UTL6102G1W3P14AWG is designed to meet UL 1977 and IEC 61984 requirements through its robust power and control capability, crimp contact reliability, and secure ground cavity. This ensures safe operation across industrial machines, robotics, and control panels while supporting compliance documentation and ongoing safety audits.
Yes. The IP68 rating provides superior ingress protection against dust and immersion in water, making the connector well-suited for washdown zones, outdoor enclosures, and exposed machinery. Combined with oil and UV resistance, it offers durable performance in harsh environments typical of manufacturing floors and processing plants.
The connector supports up to 1000 mating cycles, facilitating frequent maintenance without premature wear. It operates from -40 °C to 105 °C, enabling reliable use in cold starts, hot processes, and environments with wide temperature swings often seen in automotive, food processing, and industrial automation settings.
The assembly uses crimp contacts with a 2G1W3 layout, providing six positions (three #16 and three #20 cavities). The contacts are delivered unloaded for field termination, and the ground cavity feature enhances safety. This configuration supports reliable power and control wiring for panels, machines, and distributed control systems.
