Eaton UTL6102G1W3P16AWG Power & Control Supply - IP68
Part Number: UTL6102G1W3P16AWG
Quick Summary
UTL6102G1W3P16AWG is a compact UL/IEC power and control supply designed for rugged machine enclosures and control cabinets. It helps prevent costly downtime by delivering reliable connections in demanding environments. The unit complies with IEC 61984 and UL 1977, and features IP68 protection for immersion or washdown scenarios, providing durable performance over time. With a 24 mm footprint and 16 A rating, the 2G1W3 layout supports high-density wiring and faster assembly, while a push-pull coupling simplifies mating and disconnection. This Eaton kit is ideal for industrial automation, robotics, and process equipment, offering dependable power and control signal transmission in harsh factory settings.
Product Information
Extended Description

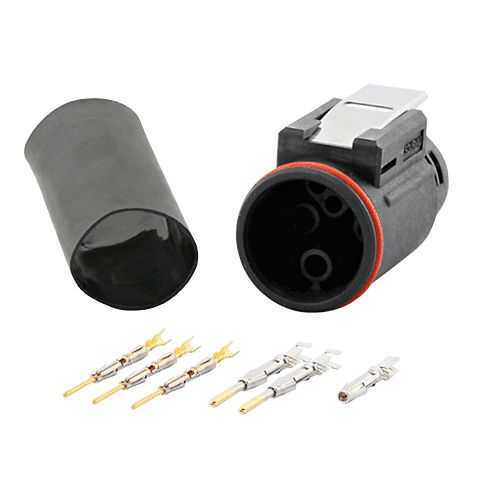

UTL6102G1W3P16AWG Eaton: Evaluation kit, with male plug and contacts, 2G1W3 layout; UTL6102G1W3P16AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6102G1W3P16AWG
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
12 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Resistant against mineral oil Resistant against basic bath Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against oil
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W3
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Salt spray
1000 hour
Feature → Business Impact → Application: The 2G1W3 layout with a ground cavity and first mate last break capability reduces wiring complexity and enhances circuit safety during maintenance, enabling faster panel assembly and safer disconnection in automation cells. This translates to lower installation labor costs and improved downtime recovery in manufacturing lines. IP68 protection, UV resistance, and oil/gasoline resistance deliver long-term reliability in washdown and harsh environments, supporting durable performance in food processing, chemical, and heavy equipment applications while minimizing replacement intervals. The 16 A current rating and 600 V UL/500 V IEC test voltages provide a robust safety margin for typical machine control circuits, enabling reliable power and signal delivery without oversizing harnesses. Mating cycles of 1000 and a straight plug design simplify field servicing and spare-part planning, reducing lifecycle costs and inventory complexity. The option to overmold connectors for extra environmental sealing and strain relief ensures harness integrity in rugged installations, improving overall system uptime. Operating from -40 °C to 105 °C covers extreme factory climates, supporting equipment uptime in cold starts and hot processing environments. Compatibility with standard 2G1W3 connections streamlines integration across Eaton Souriau UTL products and existing automation footprints, delivering a scalable path for future expansions.
Get a Quick Quote for a Eaton UTL6102G1W3P16AWG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6102G1W3P16AWG?
Enquire Now
FAQs
UTL6102G1W3P16AWG uses the 2G1W3 layout and a straight plug, designed to mate with standard Souriau UTL components. The ground cavity, first mate last break capability, and unloaded contact delivery ensure straightforward field wiring, quick replacement, and minimal mis-mating risk. This compatibility supports seamless upgrades within Eaton Souriau’s UTL family and existing control-system harnesses, reducing engineering time and accelerating integration into panels and enclosures.
This connector family is rated for 16 A (UL and IEC) with test voltages of 600 V UL and 500 V IEC. It operates from -40 °C to 105 °C and carries IP68 protection, making it suitable for washdown and outdoor-like environments. Flammability is UL94 V0, and it meets REACH/RoHS requirements, providing robust safety and regulatory alignment for power and control circuits in harsh factories.
Yes. The UTL6102G1W3P16AWG is IP68 rated, indicating high resistance to dust and immersion in water, and it also features UV resistance and robust material compatibility with mineral oil, basic baths, and gasoline. These properties, combined with UL 94 V0 flammability and UL/IEC compliance, make it well-suited for washdown areas, chemical plants, and outdoor-connected equipment in demanding industrial settings.
The UTL6102G1W3P16AWG complies with IEC 61984 and UL 1977, establishing conformity to international connector standards and ensuring safe interconnection in control cabinets. These certifications matter for equipment certification programs, customer audits, and supply-chain compliance, helping engineers meet local and global electrical safety requirements while maintaining interoperability with other UL/IEC-listed devices.
The connector supports up to 1000 mating cycles, which informs maintenance planning and spare-part provisioning for automated lines. With a push-pull coupling and exposed contact geometry, routine inspections should verify sealing integrity and crimp contact retention. Overmolded accessory options can enhance environmental sealing and strain relief, reducing the likelihood of moisture ingress and mechanical wear over time, ultimately lowering lifecycle costs.
