Eaton UTL6102G1W3PCDMX Power & Control Supply - IP68
Part Number: UTL6102G1W3PCDMX
Quick Summary
UTL6102G1W3PCDMX is a compact power and control supply for UL/IEC connectors used in harsh industrial environments. Engineers frequently grapple with achieving reliable mating, sealed protection, and long service life across rugged equipment. Designed to meet IEC 61984 and UL 1977 standards, it also carries IP68 protection and RoHS-compliant materials for durable, compliant operation. With a compact 24 mm footprint and a 6-pole configuration, this solution delivers efficiency gains, easier panel integration, and lower total cost of ownership. It supports ground cavity with first mate last break capability, praised for reliable field service and quick connect/disconnect. In practice, this translates to higher uptime on automated lines and simpler maintenance scheduling.
Product Information
Extended Description

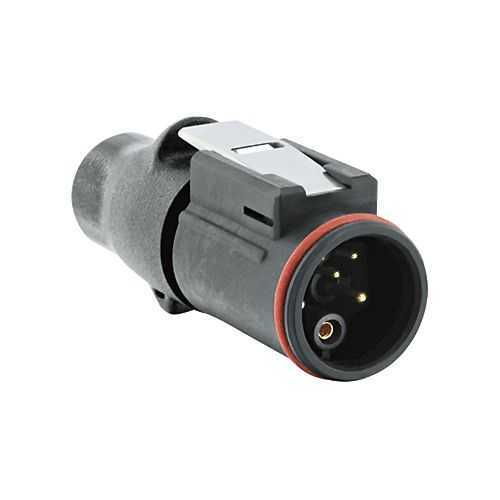

UTL6102G1W3PCDMX Eaton: Terminating 120ohm plug, for female receptacle, 2G1W3 layout; UTL6102G1W3PCDMX
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6102G1W3PCDMX
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
15 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Number Of Poles
6-pole
Environmental resistance
Resistant against mineral oil Resistant against oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against acid bath
Connector type
Plug
Contact delivery
Loaded
Contact gender
Pin (Male)
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W3
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Feature: 6-pole plug with Push-Pull coupling and straight plug design. Business Impact: Enables compact panel layouts while delivering secure, fast connections. Application: Ideal for 6-pole power and control tasks in tight control cabinets. Feature: IP68 protection and resilient environmental resistance. Business Impact: Protects against dust, water ingress, oils, and UV exposure, reducing failure rates. Application: Harsh manufacturing floors, outdoor installations, and equipment exposed to chemicals. Feature: Ground cavity layout with first mate last break capability. Business Impact: Improves field serviceability and minimizes downtime during maintenance. Application: Robotics and conveyors requiring reliable, repeatable connections. Feature: 1000 mating cycles and robust materials (polyamide insert, plastic shell). Business Impact: Longer service life and lower replacement costs in high-cycle applications. Application: Repetitive plug/unplug cycles on automated lines. Feature: -40 to 105 °C operating range. Business Impact: Maintains performance across extreme temperatures, broadening deployment possibilities. Application: Cold starts in refrigerated facilities or high-temperature processes. Feature: 24 mm footprint with 24 mm depth/height and 15 g weight. Business Impact: Lightweight, space-efficient footprint supports easy integration and reduced installation effort. Application: Panel and enclosure mounting in space-constrained automation systems.
Get a Quick Quote for a Eaton UTL6102G1W3PCDMX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6102G1W3PCDMX?
Enquire Now
FAQs
The UTL6102G1W3PCDMX uses a 2G1W3 layout with a 6-pole configuration and a straight plug, designed for ground cavity with first mate last break capability and Push-Pull coupling. It mates with Eaton Souriau UTL family receptacles and is suitable for UL/IEC power and control circuits in compact panels where space is limited.
It carries IP68 ingress protection and is built with a polyamide insert in a plastic shell, aiding environmental resistance. The unit supports exposure to oils, basic baths, UV light, and RoHS-compliant materials, while offering up to 1000 mating cycles, ensuring long-term reliability in demanding industrial settings.
Yes, this connector is well-suited for industrial automation, robotics, and conveyor systems where sealed, rugged power and control interfaces are required. Its 24 mm footprint and 6-pole configuration support compact control panels and reliable power delivery in manufacturing, packaging lines, and process automation environments.
The UTL6102G1W3PCDMX aligns with IEC 61984 and UL 1977 requirements, with RoHS compliance and UL94 V0 flame rating. These certifications help ensure regulatory compliance, electrical safety, and material integrity in industrial installations across regions.
With 1000 mating cycles, IP68 sealing, and a ground cavity design, this connector minimizes maintenance and downtime while extending service life in harsh environments. The combination of durability and reliable mating reduces spare parts usage and boosts overall equipment uptime, delivering a favorable return on investment over time.
