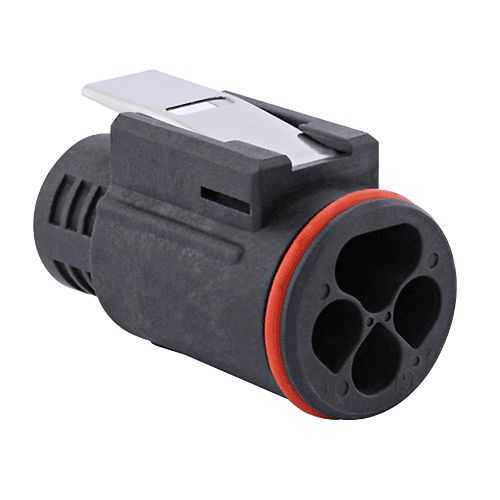

Eaton UTL6102G1W3S Power & Control Supply - IP68
Part Number: UTL6102G1W3S
Quick Summary
Eaton UTL6102G1W3S powers and controls devices in rugged industrial automation applications. Harsh environments, frequent maintenance cycles, and complex wiring are common pain points we address. With IEC 61984 and UL 1977 certifications and IP68 protection, it stands up to demanding service. As part of the Souriau UTL series, this 2G1W3 layout plug-socket solution reduces installation time and field wiring errors. Its straight plug, ground cavity option, and first mate last break capability streamline assembly, while compatible crimp contacts simplify replacement. The result is lower downtime, improved reliability, and long-term cost savings for industrial customers.
Product Information
Extended Description
UTL6102G1W3S Eaton: Female plug, 2G1W3 layout; UTL6102G1W3S
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6102G1W3S
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
12 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against mineral oil Resistant against basic bath Resistant against acid bath Resistant against gasoline
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W3
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Salt spray
1000 hour
IP68 protection and environmental resistance ensure resilient operation in wet, oily, or outdoor conditions, reducing unplanned downtime and maintenance costs. This durability translates to longer service intervals for conveyors, packaging lines, and outdoor automation installations. 2G1W3 layout with ground cavity and first mate last break capability simplifies field wiring and improves safety during assembly. The straight plug and Push-Pull coupling deliver reliable, vibration-resistant connections ideal for dynamic applications such as robotics and material handling. Current rating of 16 A and test voltage up to 600 V UL/IEC support standard automation loads, enabling compact control panels without oversizing connectors. With 6 contacts across three #16 and three #20 cavities, it accommodates essential power and signal paths in a single connector, reducing harness complexity. Mating cycles of 1000 and a polyamide insert with a plastic shell offer robust lifecycle performance in service-heavy environments. Salt spray resistance for 1000 hours adds corrosion protection on exposed assemblies, extending the life of outdoor or washdown equipment. Compliances with IEC 61984 and UL 1977, RoHS and REACH considerations, provide regulatory confidence for OEMs and integrators, while compatibility with standard Souriau UTL accessories supports easy integration into existing automation architectures.
Get a Quick Quote for a Eaton UTL6102G1W3S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6102G1W3S?
Enquire Now
FAQs
The UTL6102G1W3S is designed for UL/IEC power and control applications using the 2G1W3 layout. It features a straight plug, ground cavity option, and first mate last break capability, enabling straightforward integration into standard automation harnesses and control panels while maintaining IP68 protection and robust environmental resistance.
This connector complies with IEC 61984 and UL 1977, confirming compatibility with global electrical safety and interconnection standards. IP68 protection provides immersion resistance, which is critical for outdoor, washdown, or harsh industrial environments. These certifications help ensure regulatory compliance and reliability across OEMs and integrators.
Yes. The connector operates from -40 °C to 105 °C, covering wide ambient conditions typical in industrial automation. Its UV and oil-resistant environmental resistance, plus IP68 sealing, supports longevity in outdoor, dusty, and washdown environments where temperature swings are common.
The unit is rated for 16 A (IEC/UL) and 600 V (UL/IEC), with 6 contacts across 3 cavity #16 and 3 cavity #20. It supports up to 1000 mating cycles, which translates to lower replacement costs and longer intervals between maintenance for demanding machinery and control panels.
The 2G1W3 layout, straight plug, and first mate last break feature streamline assembly, reducing wiring errors and installation time. Push-Pull coupling enhances secure mating under vibration, while crimp contacts simplify field replacement. Overall, this translates to faster commissioning, easier serviceability, and lower total cost of ownership in automated systems.
