Eaton UTL6102G1W3S14AWG UTL power & control supply - IP68
Part Number: UTL6102G1W3S14AWG
Quick Summary
Eaton UTL6102G1W3S14AWG delivers UL/IEC power and control supply for rugged industrial connectors used in automation panels. Engineers face space constraints and mixed connector standards; this evaluation kit streamlines testing with a complete plug-and-socket arrangement in a 2G1W3 layout, reducing debugging time. The solution is UL 1977 and IEC 61984 compliant and offers IP68 protection for harsh environments, ensuring dependable performance in wet or dusty settings. With a plug-and-play approach, designers can validate mating cycles, environmental resistance, and current ratings early in the development cycle. Using this kit supports faster time-to-market, improves compliance confidence, and simplifies integration with standard automation hardware and industrial connectors.
Product Information
Extended Description

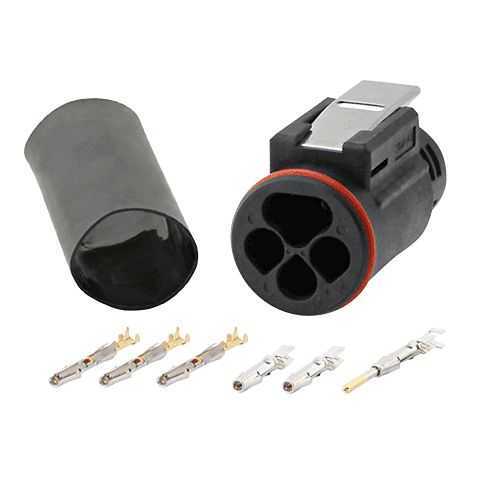

UTL6102G1W3S14AWG Eaton: Evaluation kit, with female plug and contacts, 2G1W3 layout; UTL6102G1W3S14AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6102G1W3S14AWG
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
12 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Environmental resistance
UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against basic bath Resistant against mineral oil Resistant against acid bath Resistant against oil
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W3
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Salt spray
1000 hour
Feature: Compact 24 mm shell and 6-position contact layout reduce panel footprint and simplify cable routing. Business Impact: Frees space in crowded control cabinets and lowers assembly time, enabling faster prototyping. Application: Ideal for compact machine enclosures where 2G1W3 footprint is required. Feature: 16 A current rating with 600 V UL / 500 V IEC ratings ensures reliable power and control transmission. Business Impact: Supports higher load applications with confidence, reducing the need for alternative, larger connectors. Application: Appropriate for motor control, sensors, and I/O modules in automation panels. Feature: Ground cavity, first mate last break capability and straight plug design streamline installation and maintenance. Business Impact: Eases field wiring, speeds replacements, and improves circuit integrity. Application: Field service and modular machine architectures requiring quick disconnects. Feature: IP68 environmental rating plus UV resistance and robust chemical/oil resistance. Business Impact: Delivers dependable performance in washdown, outdoor, and harsh manufacturing environments, lowering downtime. Application: Food, beverage, and chemical processing environments where exposure to moisture is common. Feature: 1000 mating cycles and polyamide shell with plastic housing. Business Impact: Demonstrates long-term reliability for repeated connect/disconnect cycles, reducing lifecycle costs. Application: Routine maintenance and reconfiguration in changing production lines. Feature: Salt spray resistance and RoHS/REACH compliance. Business Impact: Improves corrosion resistance in aggressive environments and ensures regulatory alignment. Application: Offshore, coastal, and chemical processing facilities where exposure to salts is a concern.
