Eaton UTL6102G1W3S16AWG Power and Control Supply - IP68
Part Number: UTL6102G1W3S16AWG
Quick Summary
UTL6102G1W3S16AWG is a power and control supply for UL/IEC mating in industrial equipment. Engineers often struggle with connectors that withstand harsh environments and frequent mating cycles. With UL 1977 and IEC 61984 compliance, IP68 protection, and RoHS/REACH sustainability, this solution prioritizes safety, reliability, and regulatory alignment. Its 24 mm compact footprint, 6 contacts in a 2G1W3 layout, and straight plug simplify panel integration and wiring. Overall, it delivers faster assembly, reduced downtime, and lower ownership costs for control cabinets and automation assets. Its robust performance supports consistent operation in -40 to 105 °C environments. This combination addresses common installer concerns about space, cost, and compliance.
Product Information
Extended Description

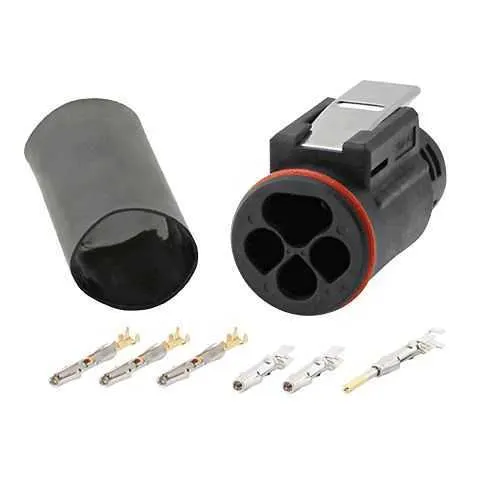

UTL6102G1W3S16AWG Eaton: Evaluation kit, with female plug and contacts, 2G1W3 layout; UTL6102G1W3S16AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6102G1W3S16AWG
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
12 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Environmental resistance
Resistant against basic bath Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W3
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Salt spray
1000 hour
Feature: 16 A current rating with IEC and UL test voltage up to 500 V IEC / 600 V UL, supplied by six crimp contacts in a 2G1W3 layout. Business Impact: this power-handling capability reduces the number of connectors required and lowers wiring complexity in control cabinets. Application: ideal for motors, drives, and other high-demand devices in automated production lines. Insight: the 2G1W3 layout includes a dedicated ground cavity that improves safety and EMI performance in tight spaces. Feature: IP68 sealing plus resistance to oil, acid, UV, and salt spray. Business Impact: prevents ingress in washdown and harsh environments, boosting uptime and asset longevity. Application: outdoor equipment, packaging lines, and robust industrial automation where exposure is common. Insight: long-term material performance reduces replacement cycles and maintenance costs. Feature: Push-Pull coupling with First Mate Last Break capability and straight plug in a compact 24 mm shell. Business Impact: enables faster, tool-free mating and reliable disconnection for service windows. Application: assembly lines and maintenance-friendly control panels. Insight: excellent for modular, hot-swappable systems where downtime is expensive. Feature: Plastic shell, polyamide insert, shell size 10, 24 mm dimensions. Business Impact: thin profile supports dense panel layouts and easier routing of power and signal. Application: small to mid-size control cabinets and modular automation modules. Insight: compatibility with overmolded connector options enhances sealing and environmental protection. Feature: 1000 mating cycles, 6 contacts, and operating temperature -40 to 105 °C, with test voltage 500 V IEC / 600 V UL. Business Impact: delivers predictable lifecycle performance and resilience in challenging environments. Application: robotics, packaging, and process automation. Insight: high-grade materials and robust design reduce unexpected failures in demanding lines. Feature: RoHS, REACH, and UL94 V0 flammability with UL 1977 and IEC 61984 standards. Business Impact: regulatory compliance across regions and safer material choices. Application: global manufacturing and energy sectors with strict supplier requirements. Insight: ensures you can source confidently for international projects without requalification.
Get a Quick Quote for a Eaton UTL6102G1W3S16AWG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6102G1W3S16AWG?
Enquire Now
FAQs
The UTL6102G1W3S16AWG uses a straight plug with Push-Pull coupling, 2G1W3 layout, six crimp contacts, and a ground cavity. It is compatible with UL 1977 and IEC 61984 systems, supports 16 A current, and accommodates a 500 V IEC / 600 V UL rating, making it suitable for control panels and machinery wiring in automation environments.
Key specs include a 16 A current rating, test voltage of 500 V IEC / 600 V UL, IP68 ingress protection, operating temperature from -40 °C to 105 °C, 1000 mating cycles, and RoHS/REACH compliance. The connector uses a 24 mm shell with 6 contacts (3 cavity #16 and 3 cavity #20) and a straight plug for straightforward installation.
Yes. With IP68 sealing and environmental resistance to oil, acids, UV, and salt spray, it is designed for washdown areas and outdoor installations. The rugged material and broad temperature range support reliable operation in harsh production floors and outdoor automation equipment.
The connector is compliant with UL 1977 and IEC 61984, and meets RoHS and REACH requirements. It also features UL94 V0 flammability characteristics, ensuring material safety in diverse global markets and helping you satisfy supplier and technical standards.
The combination of 16 A high-power capability, 1000 mating cycles, compact 24 mm footprint, and quick Push-Pull mating reduces assembly time and maintenance downtime. Regulatory compliance across regions minimizes requalification costs and supports longer service life in robotics, packaging, and process automation applications.
