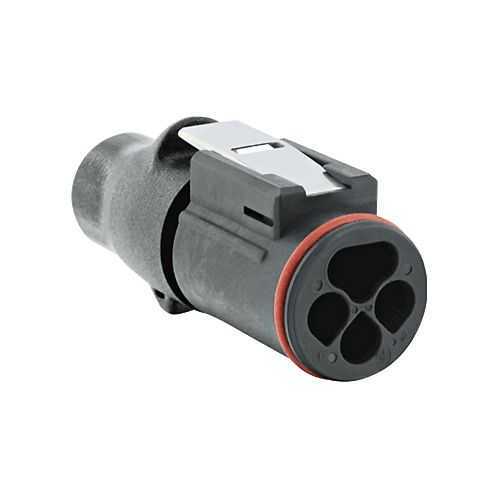

Eaton UTL6102G1W3SCDMX power and control supply - IP68
Part Number: UTL6102G1W3SCDMX
Quick Summary
The Eaton Souriau UTL6102G1W3SCDMX power and control supply delivers rugged UL/IEC connectivity for 2G1W3 layouts in harsh plants. Many projects suffer from water ingress, loose connections, and maintenance delays due to nonstandard terminations. It complies with IEC 61984 and UL 1977, with IP68 protection and RoHS/REACH environmental standards, supporting operation in washdown and outdoor environments. The compact 24 mm footprint, ground cavity option, and First Mate Last Break capability simplify installation and service while improving safety. This 6-pole plug-and-socket design reduces downtime, extends equipment life, and lowers total cost of ownership for automation, machine builders, and industrial end-users. Designed for 2G1W3 layouts, it ensures seamless compatibility with existing Eaton Souriau components.
Product Information
Extended Description
UTL6102G1W3SCDMX Eaton: Terminating 120ohm plug, for male receptacle, 2G1W3 layout; UTL6102G1W3SCDMX
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6102G1W3SCDMX
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
15 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Number Of Poles
6-pole
Environmental resistance
Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against acid bath Resistant against mineral oil Resistant against oil
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W3
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Feature: IP68 environmental protection and resistant materials → Business Impact: Maintains performance in washdown, UV exposure, and mineral oil presence, reducing unplanned downtime in outdoor and food-processing environments. Application: Outdoor automation, packaging lines, and harsh manufacturing floors. Feature: 6-pole plug and socket with 2G1W3 layout → Business Impact: Streamlined wiring, compact footprint, and faster assembly, cutting installation time and field error rates. Application: Robotic cells and panel assemblies requiring reliable multi-pin power and control. Feature: Push-Pull coupling with ground cavity and First Mate Last Break → Business Impact: Easy, tool-free mating and safe grounding with quick maintenance cycles, lowering service time. Application: Mobile equipment, conveyors, and mobile machinery. Feature: Mating cycles of 1000 and temperature range -40 to 105 °C → Business Impact: Long lifecycle resilience in extreme temperatures and high-cycle applications, reducing replacement costs. Application: Robotics, material handling, and process automation. Feature: Insert material Polyamide and Shell Plastic with IP68 → Business Impact: Durable, lightweight housing that withstands washdowns and chemical exposure, supporting long-term compliance. Application: Food & beverage, automotive, and energy equipment. Feature: Compliance with IEC 61984 and UL 1977; RoHS/REACH → Business Impact: Regulatory alignment and reduced compliance risk across markets. Application: OEMs targeting global deployments.
Get a Quick Quote for a Eaton UTL6102G1W3SCDMX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6102G1W3SCDMX?
Enquire Now
FAQs
Install with the straight plug mating to a 2G1W3 receptacle, ensuring correct orientation for the ground cavity. Use the push-pull coupling for quick engagement, verify IP68 seals are intact, and confirm RoHS/REACH compliance prior to commissioning to prevent ingress and ensure safe grounding.
The connector is IP68 rated, suitable for immersion in water and dust protection. It operates from -40 °C to 105 °C and supports up to 1000 mating cycles, offering reliable performance in demanding automation environments.
Yes. IP68 protection, robust environmental resistance, and RoHS/REACH compliance make it appropriate for outdoor wash-down and harsh environments typical in manufacturing, food & beverage, and energy sectors.
It complies with IEC 61984 and UL 1977, with RoHS and REACH environmental standards. These certifications support global deployment and regulator-aligned safety and interoperability for industrial equipment.
With First Mate Last Break grounding, 1000 mating cycles, and a durable polyamide insert in a plastic shell, the design minimizes maintenance intervals, reduces field rework, and extends service intervals in high-cycle automation applications.
