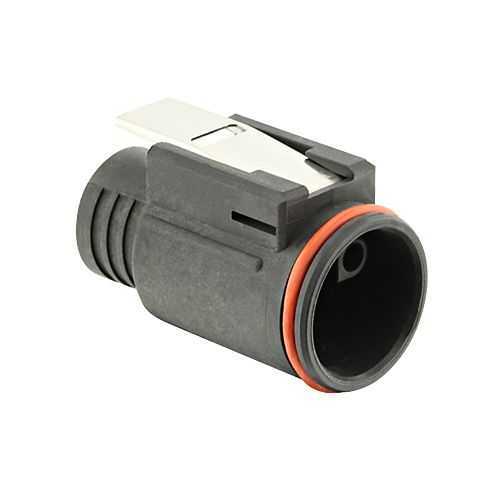

Eaton UTL6103G1P Power Plug - IP68
Part Number: UTL6103G1P
Quick Summary
UTL6103G1P is a power plug delivering reliable UL/IEC power and control supply for harsh industrial environments. Engineers often struggle with connectors that fail under vibration, moisture, or oil exposure, leading to downtime. This unit complies with UL 1977 and IEC 61984, and is RoHS/REACH compliant with IP68 protection, ensuring resilience in challenging conditions. Designed for compact installation in control cabinets and machinery housings, it delivers dependable connectivity while reducing maintenance intervals and total cost of ownership. For projects prioritizing reliability, compatibility, and regulatory conformity, the UTL6103G1P offers a proven solution with measurable business value.
Product Information
Extended Description
UTL6103G1P Eaton: Male plug, 3G1 layout; UTL6103G1P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6103G1P
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
10 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Environmental resistance
Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against gasoline Resistant against basic bath Resistant against acid bath
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
The 4-contact 3G1 layout supports 16 A current rating at 500 V IEC (600 V UL), delivering robust power and control capabilities within a compact footprint, which reduces panel space and wiring complexity for automation systems. This translates to faster assembly, fewer components, and lower installed costs in machine builders and packaging lines. The straight plug with push-pull coupling and a ground cavity enables quick, reliable mating and safe disconnection in dynamic environments, minimizing downtime during maintenance or module changes. IP68 sealing combined with a polyamide insert and plastic shell provides excellent resistance to moisture, dust, oils, UV exposure, and chemical baths, extending service life in outdoor or harsh indoor settings. Mating cycles of 1000 ensure lifecycle durability for high-use control panels, while a wide operating range from -40 °C to 105 °C supports temperature-intensive applications in automotive, robotics, and material handling. RoHS and REACH compliance further reassure purchasing teams on sustainability and regulatory alignment, reducing procurement risk. Overall, the connector’s balance of performance, ease of installation, and long-term reliability aligns with industrial automation goals of uptime, efficiency, and cost containment.
Get a Quick Quote for a Eaton UTL6103G1P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6103G1P?
Enquire Now
FAQs
The UTL6103G1P is a straight plug designed for straightforward panel mounting in control cabinets. It adheres to UL 1977 and IEC 61984, ensuring compatibility with common safety and performance expectations for power and control connectors. When installing, ensure correct crimp contact termination, proper enclosure sealing, and alignment of the 3G1 cavity layout to maintain IP68 integrity and moisture resistance.
This connector delivers 16 A current rating with 500 V IEC (600 V UL) capability. It uses a 4‑contact, crimp‑style configuration in a 3G1 layout. The plug type is straight, with push‑pull coupling, and a ground cavity feature for improved safety. Mating cycles reach around 1000, supporting reliable long-term use in automation and machinery.
Industries such as industrial automation, robotics, packaging, material handling, and outdoor machinery benefit from the UTL6103G1P. Its IP68 sealing, UV/oil resistance, and wide operating temperature range make it ideal for harsh environments, outdoor installations, and equipment subject to vibration, moisture, or chemical exposure while maintaining reliable power and control connections.
The UTL6103G1P is certified to UL 1977 and IEC 61984 and is RoHS and REACH compliant. This reduces regulatory risk for buyers and supports sustainability goals. When sourcing, verify the specific country and application requirements, as additional regional certifications may be relevant for certain installations.
With 1000 mating cycles, robust IP68 sealing, and resistance to oil and UV exposure, the UTL6103G1P minimizes unexpected outages and maintenance frequency. Its durable design translates to lower replacement costs and extended service life in automation lines, conveyors, and field-installed equipment, offering a favorable total cost of ownership for mission-critical power and control connections.
