Eaton UTL6103G1P03 Power and Control Supply - IP68
Part Number: UTL6103G1P03
Quick Summary
Eaton UTL6103G1P03 power and control supply connector is designed for rugged industrial automation applications. This compact 3G1 plug supports reliable power and control interconnects in crowded panels and tight spaces. The design aligns with UL 1977 and IEC 61984 standards, and the IP68 protection rating ensures durability in challenging environments. By combining a small footprint with robust electrical specs, it delivers consistent performance while helping reduce assembly time and maintenance costs for panel builders and OEMs.
Product Information
Extended Description

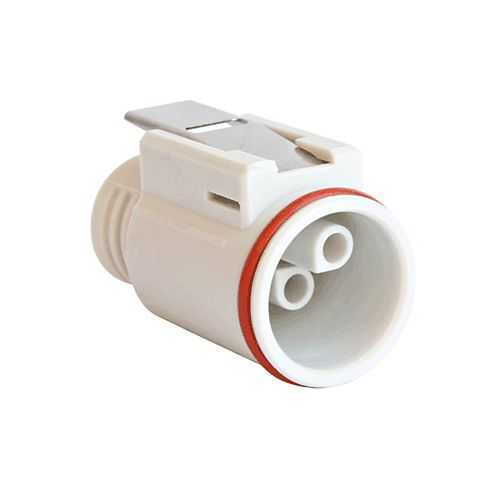

UTL6103G1P03 Eaton: Male plug grey, 3G1 layout; UTL6103G1P03
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6103G1P03
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
10 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Environmental resistance
Resistant against gasoline Resistant against oil Resistant against basic bath Resistant against acid bath Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature: 3G1 layout with four contacts and a 16 A current rating provides a compact power/control interface that fits small control panels without compromising current handling. Business impact: Higher density interconnections reduce cabinet size and wiring complexity, lowering material costs and installation time in machine builds. Application: Ideal for compact automation modules and robotic cells where space is at a premium and reliable power delivery is critical.Feature: IP68 environmental resistance plus resistance to fuels and oils enhances reliability in harsh environments. Business impact: Minimizes field failures and downtime in manufacturing lines, supporting longer service intervals and safer operations. Application: Suitable for outdoor enclosures, wash-down areas, and equipment exposed to chemical baths.Feature: Push-Pull coupling with straight plug and crimp contact delivers quick mating and secure retention. Business impact: Speeds assembly and reduces maintenance time, while maintaining a robust disconnect when needed. Application: Fast, tool-free field connections in conveyor systems and portable equipment.Feature: Polyamide shell and plastic shell material provide good impact resistance and chemical stability. Business impact: Durable components withstand vibration and accidental impacts in harsh industrial settings, extending service life. Application: Control panels and power distribution modules in OEM machinery.Feature: Mating cycles of 1000, operating temperature range -40 °C to 105 °C, and 4 cavities ensure long lifecycle and stable performance. Business impact: Improves total cost of ownership through predictable lifecycle and reduced replacement cycles. Application: Industrial machinery, automation cabinets, and robotics where temperature extremes occur.
