Eaton UTL6103G1P14AWG Power & Control Supply - IP68
Part Number: UTL6103G1P14AWG
Quick Summary
UTL6103G1P14AWG is an Eaton Souriau power and control supply designed to deliver reliable UL/IEC power in industrial automation and control panels. Engineers often struggle with moisture intrusion, field repair downtime, and connectors that fail under washdown or harsh environments. This unit complies with IEC 61984 and UL 1977 and features IP68 protection along with UV resistance for outdoor use. For system integrators, the combination of a compact 24 mm shell, 3G1 layout, and a push-pull coupling delivers faster installation, easier maintenance, and lower lifecycle costs, while ensuring compliance across safety and performance requirements.
Product Information
Extended Description

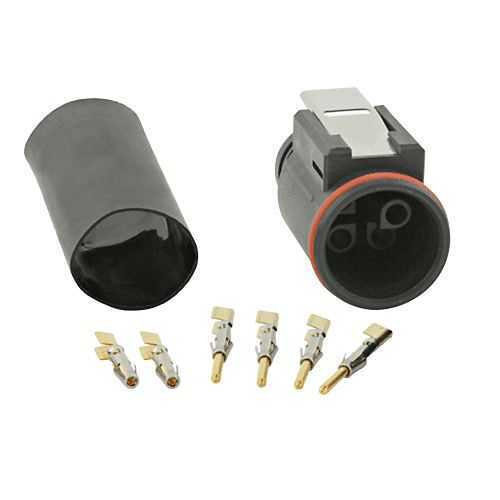

UTL6103G1P14AWG Eaton: Evaluation kit, with male plug and contacts, 3G1 layout; UTL6103G1P14AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6103G1P14AWG
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
10 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Environmental resistance
Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against oil Resistant against gasoline Resistant against acid bath
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
IP68 protection and a rugged enclosure protect against water, dust, and oil ingress. This reduces field failures and maintenance costs in washdown zones and outdoor equipment. The design is well suited for factory floors, outdoor machinery, and automated material handling where reliability is critical. Feature: 16 A current rating with 500 V IEC and 600 V UL test voltages. Business impact: supports standard power and control circuits with a robust safety margin, reducing the need for parallel wiring. Application: drives controllers, sensors, and actuators in machines and dynamic systems. Feature: 3G1 layout with four crimp contacts and a straight plug. Business impact: provides a compact 24 mm footprint and reliable mating, simplifying harness routing in tight panels. Application: machine builds and robotics where space is constrained. Feature: Push-Pull coupling and a lightweight plastic shell (shell size 10). Business impact: enables fast, tool-free mating with secure retention, speeding panel assembly and maintenance. Application: mobile or enclosure-mounted equipment that requires quick disconnects. Feature: Polyamide insert and UV-resistant plastic shell with an IP68 rating. Business impact: withstands mineral oils, sun exposure, and wide temperature ranges, extending component life. Application: outdoor installations, washdown zones, and harsh industrial environments. Feature: Rated for 1000 mating cycles. Business impact: supports frequent connect/disconnect cycles without premature wear. Application: automated lines and test setups where cycle life matters.
Get a Quick Quote for a Eaton UTL6103G1P14AWG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6103G1P14AWG?
Enquire Now
FAQs
Yes. The UTL6103G1P14AWG uses a 3G1 layout and straight plug, designed to pair with Souriau 3G1 mating components. It supports a ground cavity first mate last break and up to 1000 mating cycles, which helps ensure reliable field performance and straightforward replacement in panel assemblies.
The connector is rated for 16 A (UL and IEC) with a test voltage of 500 V IEC / 600 V UL. This supports typical control circuits and power feeds in automation equipment, while the IP68 rating protects against ingress during washdowns and harsh environments.
Yes. IP68 protection, UV resistance, and resistance to mineral oil make it well suited for outdoor installations, washdown areas, and environments with exposure to oils or chemicals. The operating temperature range of -40 to 105 °C further broadens its applicable climates.
The unit complies with IEC 61984 and UL 1977, aligning with international safety and interoperability expectations for power and control connectors used in industrial equipment.
With 1000 mating cycles and a push-pull coupling that enables quick connect/disconnect, maintenance time is reduced and lifecycle reliability is improved. The compact 24 mm shell and 4-pin configuration also simplify harness routing and rework in dense control enclosures.
