Eaton UTL6103G1P16AWG Power & Control Supply - IP68
Part Number: UTL6103G1P16AWG
Quick Summary
Eaton UTL6103G1P16AWG power and control supply is built for rugged UL/IEC power distribution in industrial automation applications. Engineers often struggle with reliable mating and environmental sealing in harsh environments; this kit offers first mate last break capability and a compact 24 mm footprint to simplify installation. It complies with IEC 61984 and UL 1977, and provides IP68 protection, RoHS and REACH compliance for long-term durability and regulatory alignment. Designed for control panels, sensor networks, and mobile automation setups, it enables dependable four-contact (4 cavities) connections with a straight plug and push-pull coupling, improving assembly speed and field serviceability. The result is predictable performance, reduced downtime, and easier maintenance in demanding environments.
Product Information
Extended Description

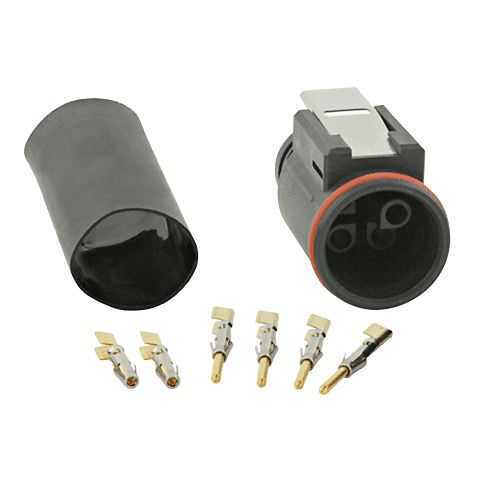

UTL6103G1P16AWG Eaton: Evaluation kit, with male plug and contacts, 3G1 layout; UTL6103G1P16AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6103G1P16AWG
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
10 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Environmental resistance
Resistant against acid bath Resistant against basic bath Resistant against gasoline Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature: High current rating of 16 A per IEC UL; Business Impact: supports demanding power loads with reliable isolation; Application: power and control circuits in heavy machinery and automation panels. Feature: 600 V UL and 500 V IEC test voltage; Business Impact: enhances safety margins for motor drives and control circuits; Application: high-voltage DC/AC control wiring in harsh environments. Feature: IP68 environmental protection combined with RoHS and REACH compliance; Business Impact: ensures ingress protection and regulatory alignment, reducing warranty claims and compliance risk; Application: outdoor enclosures and damp workshop environments. Feature: 3G1 layout with 4 cavities and straight plug; Business Impact: compact, scalable wiring with straightforward field retrofit; Application: control cabinets and modular automation setups. Feature: Push-Pull coupling with first mate last break capability; Business Impact: fast, vibration-resistant mating and maintenance-friendly disconnects; Application: high-cycle industrial installations and service operations. Feature: Polyamide shell and crimp contact design; Business Impact: durable, lightweight housing with reliable electrical contact over 1000 mating cycles; Application: mobile equipment and rugged panels that require repeated connects. Feature: Mating cycles rated at 1000; Business Impact: predictable lifecycle cost and reduced replacement frequency; Application: high-demand automation lines and repetitive use environments. Feature: Ground cavity layout for safety and grounding integrity; Business Impact: improves electrical safety and EMI performance; Application: machine tool wiring and robotics control systems.
