Eaton UTL6103G1P20AWG Power and Control Supply - IP68 Rated
Part Number: UTL6103G1P20AWG
Quick Summary
Eaton UTL6103G1P20AWG power and control supply is designed for rugged UL/IEC environments. In many projects, engineers face challenging mating, moisture ingress, and slow field terminations that delay deployment. This unit carries UL 1977 and IEC 61984 certifications and an IP68 rating, providing dependable sealing and electrical safety in wet or dusty spaces. Its compact 24 mm footprint, 4-pin 3G1 layout, and straight plug with ground cavity simplify panel mounting and cable routing. The design supports easy integration with Souriau UTL series components, reducing install time and ensuring repeatable performance in production lines.
Product Information
Extended Description

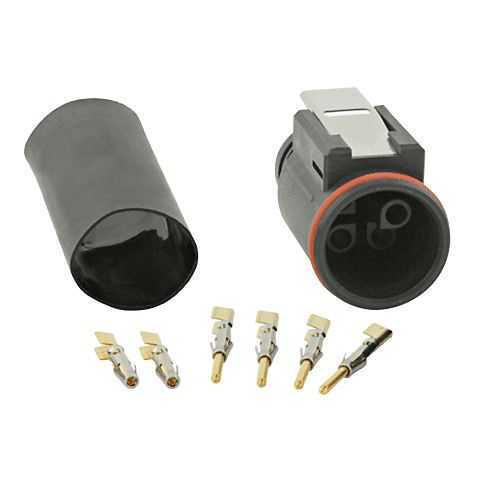

UTL6103G1P20AWG Eaton: Evaluation kit, with male plug and contacts, 3G1 layout; UTL6103G1P20AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6103G1P20AWG
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
10 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Environmental resistance
Resistant against mineral oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against oil Resistant against gasoline
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature → Business Impact → Application: The 3G1 layout with a straight plug and 4 pins speeds harness design, trimming installation time and limiting termination errors in control cabinets for automated lines. This translates to tangible labor cost reductions and improved first-pass wiring accuracy in machine tools and packaging equipment. Feature → Business Impact → Application: IP68 protection, UV resistance, and robust environmental sealing minimize field failures in dusty or oily environments, lowering downtime and maintenance costs across manufacturing floors. Feature → Business Impact → Application: UL 1977 and IEC 61984 compliance, 16 A current rating, and a 500/600 V voltage tolerance provide reliable performance across routine cycles, enabling safer equipment upscaling and easier regulatory adherence. Feature → Business Impact → Application: Ground cavity and first mate last break capability improve mating reliability, supporting quick field replacements and consistent electrical contact integrity in high-vibration environments. Feature → Business Impact → Application: 24 mm footprint and 10 g weight simplify panel integration and allow flexible rack layouts, expanding compatibility with compact automation cabinets and Souriau UTL components. Feature → Business Impact → Application: Overmold connector option and polyamide shell offer rugged, chemical-resistant housing suitable for harsh production environments, reducing long-term replacement costs and extending service life.
Get a Quick Quote for a Eaton UTL6103G1P20AWG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6103G1P20AWG?
Enquire Now
FAQs
To install, align the straight plug in the 3G1 cavity layout, engage the ground cavity, and ensure proper crimped contacts are seated. Use the IP68-rated housing to seal against dust and water ingress, and verify mating cycles are within spec (up to 1000). Mounting hardware should support vibrational environments typical of automation panels and be compatible with Souriau UTL series components.
The UTL6103G1P20AWG supports 16 A current rating (UL and IEC), with test current also at 16 A and test voltage of 500 V IEC / 600 V UL. It features 4 contacts in a 24 mm footprint, a ground cavity, and a straight plug configuration, ensuring reliable power and control signaling in standard automation tasks.
Yes. The module is IP68 rated, UV resistant, and designed to resist mineral oil and various chemical baths. It also operates across a wide temperature range (-40 to 105 C) and provides rugged sealing, making it well suited for dusty, wet, or oily industrial settings such as manufacturing lines and outdoor equipment enclosures.
The UTL6103G1P20AWG carries UL 1977 and IEC 61984 compliances, along with IP68 protection. It is RoHS and REACH compliant, and uses UL94 V0 flame-rated plastic housing. These certifications support safe, reliable operation in regulated industrial environments.
With 1000 mating cycles and ground cavity with first mate last break capability, the connector provides durable, repeatable connections and easier field maintenance. The push-pull coupling and crimp contacts simplify field terminations, reducing downtime during replacements and delivering long-term cost savings on maintenance programs.
