Eaton UTL6103G1S14AWG Power and Control Supply - IP68
Part Number: UTL6103G1S14AWG
Quick Summary
Eaton UTL6103G1S14AWG is a compact UL/IEC power and control supply designed for rugged industrial connectors. Engineers often struggle with maintaining secure, reliable mating in harsh environments and during fast maintenance windows. UL 1977 and IEC 61984 compliances, IP68 protection, and RoHS/REACH adherence ensure safe operation and regulatory peace of mind. Its compact 24 mm footprint, 16 A current rating, and 3G1 layout support dense panel designs while simplifying procurement and installation. This aligns with the Souriau UTL series and IP68-rated connectors, delivering durable control power with lower lifecycle costs for automation projects across manufacturing and process environments.
Product Information
Extended Description

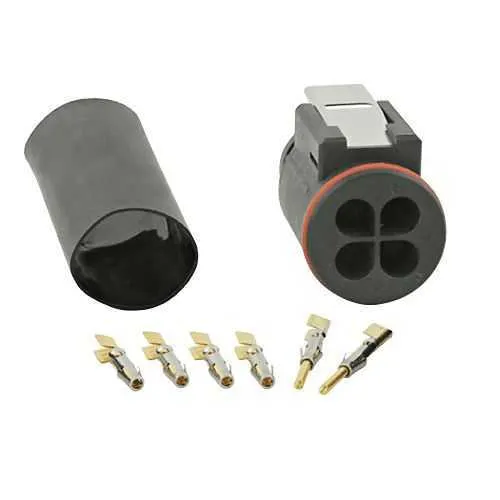

UTL6103G1S14AWG Eaton: Evaluation kit, with female plug and contacts, 3G1 layout; UTL6103G1S14AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6103G1S14AWG
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
10 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Environmental resistance
Resistant against acid bath Resistant against gasoline Resistant against mineral oil Resistant against oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature: 16 A current rating (UL/IEC) provides robust power delivery for control circuits without oversizing wiring; Benefit: reduces cable clutter and component count; Application: automation panels and robotic actuators. Feature: IP68 environmental protection and UV resistance; Benefit: protects critical signals from water, dust, and harsh media exposure; Application: outdoor enclosures, washdown areas, and harsh manufacturing floors. Feature: 4 contacts in a 3G1 layout with a straight plug and crimp contact delivery; Benefit: compact, reliable wiring with simple field assembly; Application: compact control panels and equipment rigging. Feature: Push-Pull coupling with first mate last break capability; Benefit: secure mating during vibration-prone operations and fast, tool-free disconnection; Application: high-vibration machinery and mobile equipment. Feature: Operating temperature range -40 to 105 °C and IP68-rated shell in a 24 mm shell size; Benefit: supports wide process climates and dense panel designs while extending service life; Application: process automation, food and beverage lines, and industrial robotics. Feature: Polyamide insert, plastic shell, and 10-shell size with 4 contacts; Benefit: lightweight yet durable construction that reduces weight in moving machinery; Application: space-constrained control cabinets and compact assemblies.
Get a Quick Quote for a Eaton UTL6103G1S14AWG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6103G1S14AWG?
Enquire Now
FAQs
Plan for a 24 mm shell size with a 3G1 layout and straight plug. Use crimp contacts and ensure the socket is connected to a 4-contact, ground-enabled circuit. Verify IP68 sealing and mating integrity during installation, and confirm RoHS/REACH compliance to maintain regulatory conformity across the panel.
The assembly is rated for 16 A per UL and IEC, with voltage ratings of 600 V UL and 500 V IEC. It has 4 contacts in a 3G1 arrangement, a 1000-mating-cycle life, and IP68 protection. Designed for use in demanding automation environments, it supports high-power control signals with reliable performance.
Yes. The UTL6103G1S14AWG uses a 3G1 layout and straight plug, aligning with Souriau UTL family conventions. This ensures straightforward mating with compatible sockets and ground cavities, improving installation speed and reducing misalignment risk in dense automation panels.
It complies with UL 1977 and IEC 61984, with RoHS and REACH compliance, UL94 V0 flame rating for materials, and IP68 protection. This combination supports regulatory approvals for industrial equipment in wet or dusty environments and helps sustain long-term field reliability.
By reducing field failures through IP68 protection and robust mating, and enabling faster maintenance with a compact 24 mm footprint, the unit lowers downtime and labor costs. Its 1000 mating cycles ensure longevity in busy lines, while the 16 A rating accommodates common control-power needs without oversizing components.
