Eaton UTL6103G1S16AWG Power & Control Supply - IP68 Rating
Part Number: UTL6103G1S16AWG
Quick Summary
Eaton UTL6103G1S16AWG delivers UL/IEC power and control for industrial panels. Engineers often face compatibility gaps and costly rework when integrating modular power connectors, making early evaluation essential. Compliances include IEC 61984 and UL 1977, with IP68 sealing and RoHS/REACH support, giving confidence for harsh environments. As an evaluation kit with a 3G1 layout and ground cavity, it accelerates testing, onboarding, and deployment while reducing risk and time-to-value. Its compact 24 mm footprint and 4-contact configuration support typical automation tasks, from control cabinets to field-installed harnesses.
Product Information
Extended Description

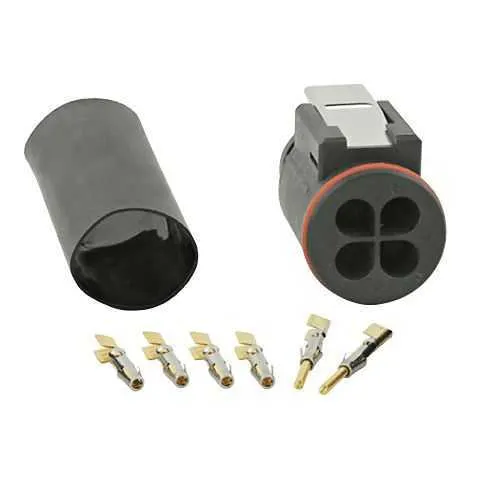

UTL6103G1S16AWG Eaton: Evaluation kit, with female plug and contacts, 3G1 layout; UTL6103G1S16AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6103G1S16AWG
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
10 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Environmental resistance
Resistant against oil Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against acid bath Resistant against mineral oil
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature: The UTL6103G1S16AWG uses a 3G1 layout with a socket (female) contact and first mate last break capability. Business Impact: This arrangement simplifies safe power-down and quick replacement during maintenance, reducing downtime and improving serviceability. Application: Ideal for test rigs, control panels, and equipment assemblies requiring reliable mating in confined spaces. Feature: Current rating of 16 A UL and 16 A IEC, with test voltage of 600 V UL and 500 V IEC. Business Impact: Supports typical industrial loads while preserving regulatory compliance and system safety. Application: Suitable for power distribution blocks and control circuits in automation cabinets. Feature: Push-Pull coupling and IP68 protection. Business Impact: Delivers robust, splash-resistant connections that are resistant to dust, water ingress, and field wear. Application: Outdoor or harsh-environment equipment, machinery housings, and mobile automation devices. Feature: Material and construction details: polyamide insert, plastic shell, shell size 10. Business Impact: Lightweight, compact design facilitates easy installation and reduces panel space usage. Application: Small-to-mid scale panels and modular instrumentation housings. Feature: environmental and life-cycle specs: -40 to 105 °C operating range, 1000 mating cycles, salt spray 1000 hours. Business Impact: Ensures reliability across temperature swings and long-term use with predictable maintenance planning. Application: Industrial robots, conveyor controls, and machine building where durability matters. Feature: Compliance and safety: RoHS, REACH, UL94 V0. Business Impact: Supports regulatory adherence and safer material choices for electronics assemblies. Application: Any machine built to modern environmental and safety standards.
