Eaton UTL6103G1S20AWG Power & Control Supply - IP68
Part Number: UTL6103G1S20AWG
Quick Summary
UTL6103G1S20AWG is a compact UL/IEC power and control supply connector designed for 3G1 layouts in industrial equipment. When integrating modular I/O and control panels, mismatched connectors and limited IP protection can slow commissioning and elevate field failure risk. This unit complies with IEC 61984 and UL 1977, and also aligns with RoHS and REACH, offering robust IP68 sealing for demanding environments. In addition to reliability, its 24 mm footprint and 4 contact configuration help reduce panel crowding while enabling scalable automation connectivity, supporting quicker deployments and easier maintenance for capital-intensive manufacturing lines.
Product Information
Extended Description

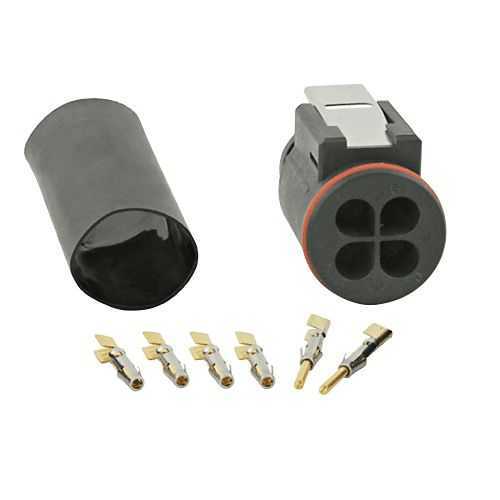

UTL6103G1S20AWG Eaton: Evaluation kit, with female plug and contacts, 3G1 layout; UTL6103G1S20AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6103G1S20AWG
Product Length/Depth
24 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
10 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against acid bath Resistant against oil Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against basic bath
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature → Business Impact → Application: The UTL6103G1S20AWG is a 4-contact, straight plug connector in a 3G1 layout, delivering a 16 A current rating for compact control circuits, enabling efficient enclosure wiring and reduced cable runs in machine panels. This translates to lower installation time and improved system reliability in conveyors and robotic cells that demand fast, secure mating. Feature → Business Impact → Application: Push-Pull coupling and ground cavity design provide dependable mating and easy field servicing, reducing downtime during maintenance and upgrades in packaging lines and stamping presses. Feature → Business Impact → Application: IP68 ingress protection, RoHS and REACH compliance, and UV/multi-environment resistance ensure sustained performance in outdoor enclosures and oil/fluid-exposed areas, supporting long service life and regulatory conformity. Feature → Business Impact → Application: 24 mm shell and polyamide insert enable compact, lightweight interfaces, improving space utilization in control cabinets and reducing overall system weight. Feature → Business Impact → Application: Mating cycles rated at 1000 with crimp contacts and unloaded delivery support flexible installation strategies, from pre-wiring harnesses to field retrofit projects in industrial automation settings.
