Eaton UTL6122G1W5P UTL Power & Control Supply IP68
Part Number: UTL6122G1W5P
Quick Summary
UTL6122G1W5P is a rugged power and control plug for industrial automation, delivering reliable UL/IEC connectivity. Engineers often struggle with mismatched standards, inconclusive IP sealing, and poor service life in harsh environments. Its IEC 61984 and UL 1977 compliance, plus IP68 sealing and RoHS/REACH eco-certifications, help ensure regulatory alignment. The compact 2G1W5 layout and 8-pin configuration enable cleaner panel layouts and cable routing. This design supports up to 16 A at 500 V IEC (600 V UL), delivering power and control where space is tight. By reducing maintenance needs and compatibility risks, it lowers total cost of ownership for automation projects.
Product Information
Extended Description

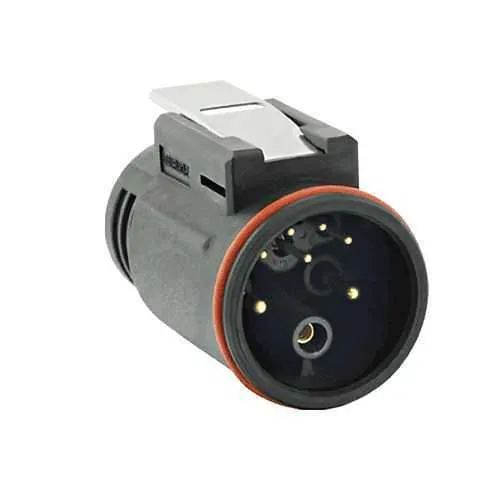

UTL6122G1W5P Eaton: Male plug, 2G1W5 layout; UTL6122G1W5P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6122G1W5P
Product Length/Depth
39.4 mm
Product Height
27 mm
Product Width
28 mm
Product Weight
12 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Environmental resistance
Resistant against gasoline Resistant against basic bath Resistant against oil Resistant against mineral oil Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W5
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
3
Number of cavity #20
5
Salt spray
1000 hour
Feature: 16 A current rating with 500 V IEC and 600 V UL limits and an 8-contact crimp configuration in a 2G1W5 layout. Business impact: supports higher power loads in compact assemblies, reducing harness complexity and the need for parallel connectors. Application: ideal for machine controllers, servo drives, and power distribution blocks in automation equipment. Feature: IP68 sealing with resistance to oils, fuels, and mineral oils; RoHS/REACH compliance. Business impact: longer lifecycle and lower maintenance costs in harsh environments. Application: automation equipment exposed to fluids, heat, and outdoor conditions. Feature: Ground cavity layout with First Mate Last Break capability; Push-Pull coupling; Straight plug. Business impact: faster mating cycles and safer, error-reducing connections. Application: panel harnesses and field wiring in robotics and material handling. Feature: 3 cavities #16 and 5 cavities #20 among 8 total contacts; Crimp contact; Shell size 12; 39.4 mm length; 27 mm height; 28 mm width; 12 g weight. Business impact: compact footprint enables tighter equipment packaging and easier serviceability. Application: space-constrained control cabinets and machinery. Feature: Mating cycles up to 1000; Operating temperature −40 to 105 °C; Compliances IEC 61984; UL 1977; 5-year UV exposure rating. Business impact: predictable performance, extended reliability, and audit-ready compliance. Application: heavy machinery, automation lines, testing rigs.
