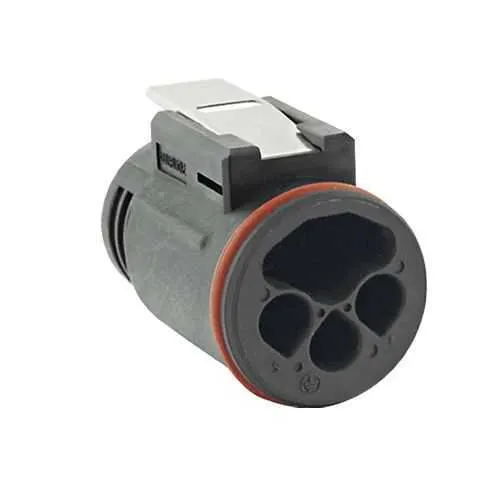

Eaton UTL6122G1W5S UTL power/control plug - IP68
Part Number: UTL6122G1W5S
Quick Summary
Eaton UTL6122G1W5S is a rugged UL/IEC power and control supply plug designed for harsh industrial environments and demanding automation applications. In the field, misalignment, moisture ingress, and grounding issues can cause costly downtime; this connector addresses those pains with robust sealing, a ground cavity, and first mate last break capability. The device complies with IEC 61984 and UL 1977, with IP68 protection to withstand dust, water, and wash-down exposure. The combination of a compact 2G1W5 layout and a 16 A rating delivers reliable power delivery, while its crimp contact design and push-pull coupling support fast, safe maintenance and scalable panel wiring for growing machines and lines.
Product Information
Extended Description
UTL6122G1W5S Eaton: Female plug, 2G1W5 layout; UTL6122G1W5S
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6122G1W5S
Product Length/Depth
39.4 mm
Product Height
27 mm
Product Width
28 mm
Product Weight
12 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Environmental resistance
Resistant against basic bath Resistant against oil Resistant against gasoline Resistant against mineral oil Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W5
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Number of cavity #16
3
Number of cavity #20
5
Salt spray
1000 hour
Feature → Business Impact → Application: The 2G1W5 layout houses 8 contacts (3x #16, 5x #20) in a compact 28 mm width, enabling higher I/O density on control panels and machine hoods, reducing panel footprint and wiring complexity. This supports faster install times and easier field upgrades in robotics and assembly lines. Feature → Business Impact → Application: IP68-rated housing provides outstanding ingress protection against dust, water, and oil—significantly extending service life in wash-down environments such as food & beverage and packaging lines, lowering maintenance frequency. Feature → Business Impact → Application: First mate last break with ground cavity ensures safer disconnections during maintenance, minimizing accidental energization and improving technician safety on machines and conveyors. Feature → Business Impact → Application: 16 A current rating and 500/600 V operating voltages cover typical servo drives and automation power needs, enabling a single connector family for both power and control signals in automation cabinets. Feature → Business Impact → Application: Push-Pull coupling and straight plug design simplify installation in tight spaces, speeding up panel builds and reducing installation errors, while the 1000 mating cycles support longer equipment lifecycles in high-use environments. Feature → Business Impact → Application: Environmental resistance including oil, mineral oil, and UV exposure with UV resistance ensures performance in outdoor or harsh environments, supporting long-term reliability for OEMs and integrators building industrial machinery.
