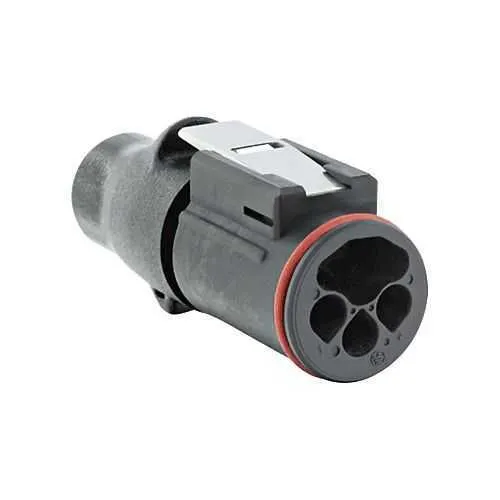

Eaton UTL6122G1W5SCDMX Power and Control Supply - IP68
Part Number: UTL6122G1W5SCDMX
Quick Summary
UTL6122G1W5SCDMX is a rugged 8-pole power and control supply for industrial machinery and automation panels. Engineers often wrestle with downtime caused by ingress, corrosion, or mis-mating connectors in harsh environments. The unit complies with IEC 61984 and UL 1977, offers IP68 protection, and carries RoHS and REACH declarations to meet modern compliance. With a compact 70 mm length, 28 mm width, and 27 mm height, it fits tight enclosures while delivering a 2G1W5 layout and ground cavity capability. In practice, this reduces maintenance time and extends lifecycle on conveyors, packaging lines, and outdoor equipment. As part of the Souriau UTL series, it combines reliability with ease of installation for industrial automation teams.
Product Information
Extended Description
UTL6122G1W5SCDMX Eaton: Terminating 120ohm plug, for male receptacle, 2G1W5 layout; UTL6122G1W5SCDMX
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6122G1W5SCDMX
Product Length/Depth
70 mm
Product Height
27 mm
Product Width
28 mm
Product Weight
12 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Number Of Poles
8-pole
Environmental resistance
Resistant against acid bath Resistant against mineral oil Resistant against oil Resistant against gasoline Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W5
Plug type
Straight Plug
Shell material
Plastic
Shell size
12
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Feature: 8-pole plug with a 2G1W5 layout delivers integrated power and control paths in a single connection. Business impact: reduces wiring complexity and minimizes assembly time on new builds or retrofits. Application: suitable for compact automation panels and Souriau UTL-based interconnects in conveyor lines and packaging machines. Feature: IP68 sealing and UV-resistant materials protect against dust, moisture, and challenging environments. Business impact: extends service life, lowers maintenance frequency, and avoids unplanned downtime. Application: outdoor installations, washing lines, and equipment subject to oil, coolant, or mineral oil exposure. Feature: Push-Pull coupling with first mate last break capability ensures quick, reliable mating and safe disengagement. Business impact: reduces tool time during changeovers and improves worker safety. Application: assembly cells where frequent connector engagement is required and line stoppages are costly. Feature: Ground cavity layout and polyamide shell offer robust electrical isolation and mechanical resilience. Business impact: supports reliable signal integrity and reduces cross-talk in multi-pin layouts. Application: multi-function control and power circuits across industrial robots and material handling systems. Feature: Rugged temperature range -40 to 105 °C and 1000 mating cycles with a compact footprint. Business impact: predictable performance under thermal stress and longer lifecycle, lowering total cost of ownership. Application: harsh manufacturing floors, chemical plants, and outdoor equipment. Feature: RoHS and REACH compliance with UL 94 V0 rated materials. Business impact: easier regulatory qualification and sustainability reporting. Application: installs in regulated facilities and warranty-active environments.
Get a Quick Quote for a Eaton UTL6122G1W5SCDMX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6122G1W5SCDMX?
Enquire Now
FAQs
Yes. The UTL6122G1W5SCDMX uses the 2G1W5 layout and a straight plug designed to mate with Souriau 2G1W5 receptacles. Verify shell size and ground cavity alignment, and ensure the enclosure provides adequate gasket sealing to maintain IP68. This keeps both power and signal paths protected during field installations.
The connector operates from -40 °C to 105 °C and supports up to 1000 mating cycles. These specs, combined with IP68 protection, grimly reduce the risk of performance loss in thermal cycling, vibration, or outdoor exposure, making it suitable for demanding automation environments.
Yes, the IP68 rating and UV-resistant materials make it well-suited for outdoor packaging lines and machinery exposed to dust, moisture, or oils. Its 8-pole configuration consolidates power and control signals in a compact footprint, supporting reliable operation in harsh industrial settings.
This model complies with IEC 61984 and UL 1977, with RoHS and REACH declarations. For documentation, request certificates of conformity and material safety data as well as installation guidelines to support regulatory qualification and audit readiness on regulated facilities.
With 1000 mating cycles and robust environmental protection, maintenance intervals are extended and downtime minimized. The push-pull coupling supports rapid line changes, reducing labor costs, while the grounded cavity design improves signal integrity, contributing to longer equipment life and lower total cost of ownership over the system lifecycle.
