Eaton UTL6145S Plug - IP68
Part Number: UTL6145S
Quick Summary
UTL6145S plug provides UL/IEC power and control for rugged industrial equipment. Maintenance teams often face costly downtime when connectors fail due to vibration, oil exposure, or harsh wash-down cycles in rugged applications. Certified to UL 1977, CSA-C22.2, IEC 61984, and IP68 protection, this connector meets safety and durability expectations across global installations. The 5-cavity layout supports compact wiring in tight panels, while 32 mm compact dimensions simplify panel design. For buyers, this means reliable connectivity, regulatory alignment, and long-term cost savings across automation, robotics, and machinery installations. In practice, it reduces spare parts and replacement cycles, enabling smoother project timelines.
Product Information
Extended Description

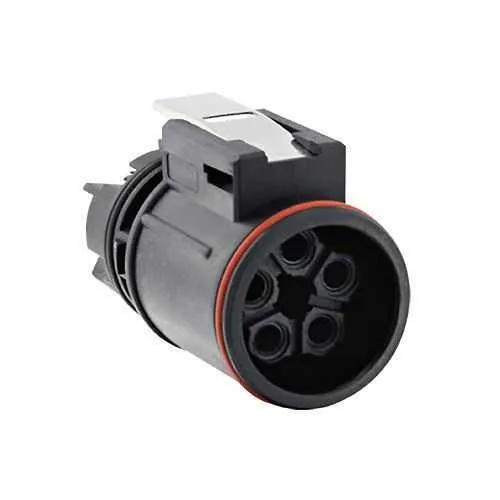

UTL6145S Eaton: Female plug, 5 cavities; UTL6145S
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6145S
Product Length/Depth
32 mm
Product Height
32 mm
Product Width
32 mm
Product Weight
31 g
Compliances
UL 1977 CSA-C22.2 IEC 61984
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Environmental resistance
Resistant against mineral oil Resistant against basic bath Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against oil Resistant against gasoline
Test current
16 A IEC 16 A UL 13 A CSA
Test voltage
600 V CSA 500 V IEC 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
200
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
1000 hour
Feature: 5-cavity straight plug with a ground cavity layout and first mate-last break capability. Business Impact: Enables secure, straightforward wiring and safe disconnection for maintenance. Application: Ideal for control cabinets and machine feeds in automation and manufacturing environments. Feature: IP68 environmental protection and resistance to mineral oil, basic/acid baths, UV exposure. Business Impact: Delivers dependable performance in wash-down and oil-prone settings, reducing unplanned downtime. Application: Robotic cells, conveyors, and heavy equipment exposed to harsh surroundings. Feature: 16 A current rating and 600 V maximum voltages with five contacts and 200 mating cycles. Business Impact: Supports demanding loads with durable, repeatable connections, lowering replacement costs. Application: Power and signal distribution in industrial automation. Feature: Compliance and material robustness including UL 1977, CSA-C22.2, IEC 61984, RoHS/REACH, and UL94 V0. Business Impact: Ensures regulatory alignment and safer supply chains across regions. Application: Global installations in automotive, packaging, and factory automation. Feature: Compact footprint with 32 mm depth/width/height and push-pull coupling. Business Impact: Eases panel integration and reduces installation time in tight spaces. Application: Control panels and robotic interfaces where space is at a premium.
