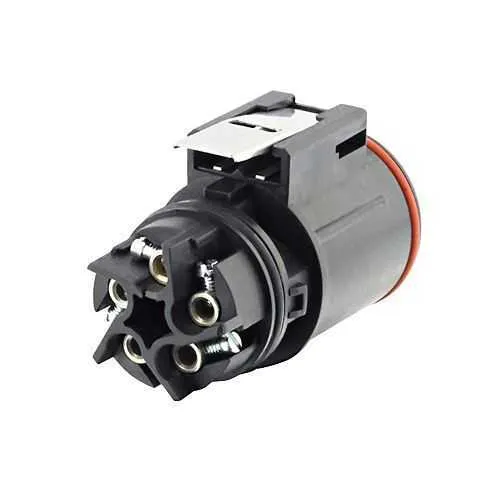

Eaton UTL6145SSCR Power & Control Plug - IP68
Part Number: UTL6145SSCR
Quick Summary
Eaton UTL6145SSCR is a five-position power and control plug designed for UL/IEC systems in harsh industrial environments. Engineers often struggle with moisture, dirt, and vibration causing intermittent connections and downtime; this connector provides a robust path to reliable operation. The design aligns with IP68 protection and UL/IEC 61984 compliance, alongside CSA/C22.2 standards, ensuring safety and regulatory conformity. By leveraging a ground cavity, screw contacts, and a 5‑cavity layout, you gain a durable, serviceable solution that simplifies panel design, reduces maintenance, and supports scalable automation architectures. For panel builders and machine builders, this means fewer part variants, faster commissioning, and longer service life in demanding applications.
Product Information
Extended Description
UTL6145SSCR Eaton: Female plug, with screw contacts, 5 cavities; UTL6145SSCR
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6145SSCR
Product Length/Depth
36.4 mm
Product Height
32 mm
Product Width
32 mm
Product Weight
37 g
Compliances
CSA-C22.2 UL 1977 IEC 61984
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against gasoline Resistant against acid bath Resistant against mineral oil
Test current
16 A IEC 13 A CSA 16 A UL
Test voltage
500 V IEC 600 V CSA 600 V UL
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Screw
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Mating cycles
200
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
1000 hour
Feature → Business Impact → Application: The UTL6145SSCR uses a 5-cavity configuration with screw terminal contacts, delivering a secure, low-resistance connection that reduces loose-circuit risk and maintenance costs in automation panels. This translates to higher uptime for conveyors and CNC machinery and predictable electrical performance in robotics. Feature → Business Impact → Application: IP68 protection and a rugged plastic shell with polyamide inserts deliver water and dust ingress protection, enabling reliable operation in washdown environments and outdoor installations without frequent replacements. Feature → Business Impact → Application: A straight plug with a ground cavity and first mate/last break capability supports quick field servicing and reinforced safety in control cabinets, minimizing downtime during panel reconfigurations. Feature → Business Impact → Application: A 16 A IEC/UL current rating and 500 V IEC (600 V CSA/UL) voltage rating enable Power & Control applications across standard industrial electronics, reducing the need for multiple adapters. Feature → Business Impact → Application: Mating cycles of 200, combined with overmoldable connector options, offer long service life in high-mate frequency installations such as packaging lines and automated tooling. Feature → Business Impact → Application: The Souriau UTL series compatibility ensures availability of matching housings and accessories, simplifying installation and maintenance while keeping cost per connection predictable in factory automation networks.
Get a Quick Quote for a Eaton UTL6145SSCR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6145SSCR?
Enquire Now
FAQs
The UTL6145SSCR supports up to 200 mating cycles, providing reliable performance in high-mate-frequency applications and reducing replacement and maintenance costs in production lines.
Yes. The connector complies with UL 1977 and IEC 61984, along with CSA-C22.2, ensuring safety, compatibility, and regulatory alignment for UL/IEC power and control systems.
The connector operates from -40 °C to 105 °C, making it suitable for extreme factory environments, outdoor installations, and equipment exposed to wide temperature swings.
Ideal for industrial automation panels, robotics, conveyors, and machinery controls where a robust 5-cavity plug with IP68 protection and screw contacts is needed for UL/IEC power and control supply.
The connector includes a ground cavity and is compatible with overmolding for streamlined installation and environmental sealing, reducing assembly time and improving seal integrity in challenging environments.
