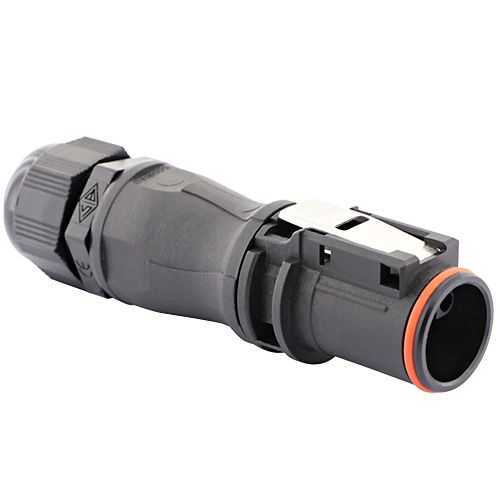

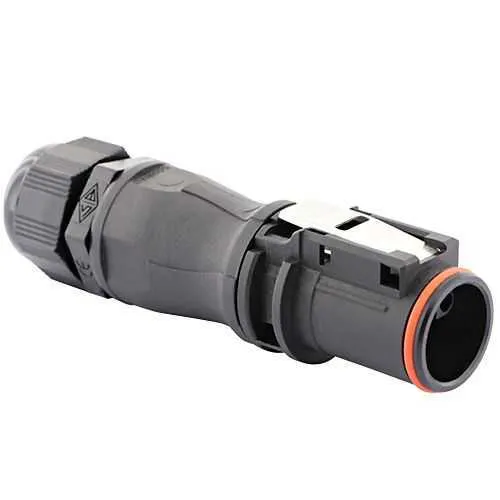

Eaton UTL6JC103G1P UTL power and control supply - IP68
Part Number: UTL6JC103G1P
Quick Summary
Eaton UTL6JC103G1P is a power and control plug for UL/IEC connections in industrial automation. In challenging environments, installation errors and moisture ingress can cause costly downtime; this connector addresses those pain points with robust sealing and a rugged design. It complies with UL 1977 and IEC 61984, is IP68 rated, and also carries RoHS and UL94 V0 flammability ratings for safety and compliance. With four crimp contacts, a 16 A current rating, and a straight plug with a sealing gland backshell, it enables quick, reliable field wiring. This combination delivers dependable performance in control panels, robotics, and machine-centric applications while supporting cost-efficient maintenance and scalable growth.
Product Information
Extended Description
UTL6JC103G1P Eaton: Male plug, with cable gland backshell, 4 cavities; UTL6JC103G1P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6JC103G1P
Product Length/Depth
100.4 mm
Product Height
26.1 mm
Product Width
24 mm
Product Weight
36 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Environmental resistance
Resistant against mineral oil Resistant against oil Resistant against gasoline Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature: Four 16 A rated contacts across four cavities. Business Impact: Higher power density in a single connector reduces harness complexity and installation time, lowering assembly costs. Application: Industrial machines and automated lines requiring compact, robust power and control distribution. Feature: IP68 protection with a sealing gland back shell. Business Impact: Superior ingress protection minimizes downtime from dust and water exposure, extending device life in harsh environments. Application: Outdoor control panels, conveyors, and wash-down areas where reliability matters. Feature: First mate last break capability and ground cavity layout. Business Impact: Simplifies field maintenance and wiring verification, reducing commissioning time and wiring errors. Application: Panel wiring and field-applicable control cabinets where quick servicing is beneficial. Feature: 1000 mating cycles and durable polyamide insert with a plastic shell. Business Impact: Long service life with predictable performance, lowering replacement costs and maintenance intervals. Application: Robotics, conveyors, and automated equipment with frequent connection cycles. Feature: Push-Pull coupling, straight plug, 3G1 layout. Business Impact: Fast, secure engagement with reliable mechanical latching, improving installation speed and operator confidence. Application: Flexible harnessing in tight control panels and modular automation systems. Feature: Broad compliance and material resilience (UL 1977, IEC 61984, RoHS, Reach, UL94 V0). Business Impact: Regulatory peace of mind and compatibility with modern, sustainability-focused design. Application: Harsh industrial environments where safety and environmental standards are mandatory.
Get a Quick Quote for a Eaton UTL6JC103G1P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6JC103G1P?
Enquire Now
FAQs
The UTL6JC103G1P complies with UL 1977 and IEC 61984, offers IP68 protection, and carries RoHS and UL94 V0 flammability ratings. This combination ensures safe, reliable operation in harsh industrial environments and aligns with common electrical and safety specifications used in automation projects.
Yes. The connector is IP68 rated and uses a sealing gland backshell, providing superior ingress protection against water and dust. This makes it well-suited for outdoor control panels, wash-down areas, and conveyors exposed to moisture.
The unit features a 16 A current rating, supports up to 500 V IEC or 600 V UL, and operates from -40 °C to 105 °C. These specs support reliable performance across a wide range of industrial applications and ambient conditions.
A 1000 mating cycles lifespan indicates durable connection integrity over repeated connect/disconnect cycles, reducing premature wear and maintenance costs. This is especially beneficial in automation lines, robotics, and panel wiring where frequent harness changes occur.
Installation is streamlined by the straight plug design, sealing gland backshell, and a 3G1 layout with four crimp contacts. The product ships with an integrated connector option, simplifying field assembly and ensuring reliable, fast mating in compact control panels.
