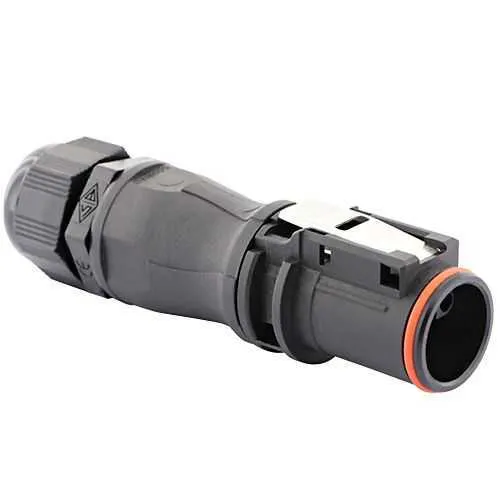

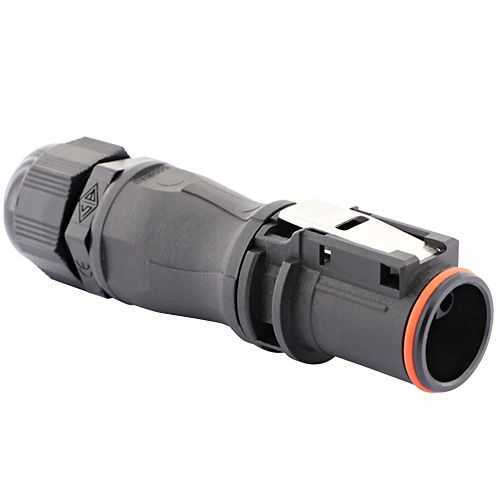

Eaton UTL6JC103G1S UTL series power plug - IP68
Part Number: UTL6JC103G1S
Quick Summary
Eaton UTL6JC103G1S is a power and control supply plug designed for rugged industrial equipment and challenging automation environments. Engineers frequently face moisture ingress, cabling strain, and downtime in outdoor or mobile installations. UL 1977 and IEC 61984 certifications together with IP68 ingress protection address safety, interoperability, and long service life. Coupled with a 4‑cavity layout, ground-back sealing gland, and push‑pull coupling, it reduces installation time and field maintenance. In practice, you gain electrical reliability up to 16 A at up to 500 V, RoHS/REACH compliance, and dependable operation across -40 to 105 °C. This combination supports scalable automation, reduces total cost of ownership, and simplifies compliance reporting.
Product Information
Extended Description
UTL6JC103G1S Eaton: Female plug, with cable gland backshell, 4 cavities; UTL6JC103G1S
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6JC103G1S
Product Length/Depth
100.4 mm
Product Height
24 mm
Product Width
24 mm
Product Weight
36 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against mineral oil Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath Resistant against acid bath Resistant against oil
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Straight Plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
The UTL6JC103G1S features a rugged IP68 sealed backshell with a sealing gland that protects four crimp contacts from dust and water ingress, significantly extending field life in harsh environments. This translates to lower maintenance costs and fewer unplanned outages in outdoor plants or mobile equipment, while enabling quick replacement or reconfiguration without compromising safety. The 4‑cavity, 3G1 layout with a straight plug supports dense wiring in control panels and compact enclosures, improving installation efficiency and reducing panel footprint. With a 16 A rating and a 500 V IEC/600 V UL specification, it powers control circuits and small drives reliably, while meeting stringent industrial standards. The combination of first mate last break capability and durable materials adds predictable performance over thousands of mating cycles, simplifying lifecycle planning and vendor interoperability. RoHS and REACH compliance further reduce compliance risk and environmental impact for modern automation projects. The Souriau UTL series’ compatibility with standard Souriau components ensures easier maintenance, spare parts availability, and streamlined integration into existing electrical architectures.
Get a Quick Quote for a Eaton UTL6JC103G1S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6JC103G1S?
Enquire Now
FAQs
Begin by confirming enclosure ingress protection and mounting space for a 4‑cavity straight plug. Use the backshell Sealing Gland with the cable gland, route conductors to the 4 crimp contacts, and secure with the First Mate Last Break configuration to simplify mating. Ensure proper crimp termination and verify IP68 sealing after assembly to prevent moisture ingress in demanding environments.
The UTL6JC103G1S is rated for 16 A at up to 500 V IEC and 600 V UL, with four conductors. It uses a Push-Pull coupling and a straight plug design, offering reliable mating cycles up to 1000. This makes it suitable for motor control, sensors, and field power feeds in automated systems while maintaining safe voltage and current margins.
Yes. The IP68 rating, sealing gland backshell, and resistance to mineral oil, UV exposure, and various baths make it well suited for outdoor, wash-down, and mobile equipment. Its wide operating temperature range (-40 °C to 105 °C) further supports use in harsh climates, reducing failure risk in harsh environments.
This connector complies with UL 1977 and IEC 61984, ensuring safety and compatibility with industrial systems. It is RoHS and REACH compliant, and the IP68 rating provides robustIngress Protection. These certifications support regulatory adherence and supplier qualification for industrial automation projects.
The UTL6JC103G1S offers up to 1000 mating cycles, oil and solvent resistance, and durable backshell sealing. These features reduce maintenance frequency and spare-part costs, minimize unplanned downtime, and improve total cost of ownership for automation installations, making it a dependable choice for long-term plant reliability.
