Eaton UTL6JC145S UTL Series Power and Control Supply - IP68
Part Number: UTL6JC145S
Quick Summary
Eaton UTL6JC145S power and control supply enables reliable 5‑cavity plug connections for UL/IEC machinery control networks. Panel builders often struggle with moisture ingress, slow maintenance cycles, and mismatched standards when deploying multi‑cavity connectors. Compliances include IEC 61984, UL 1977, and CSA‑C22.2, supporting safety and cross‑border compatibility in demanding environments. For procurement teams, the sealed IP68‑rated design with a grounding backshell gland and First Mate Last Break capability streamlines installation, reduces field failures, and simplifies spare parts management. The 5‑position layout, 16 A current rating, and 600 V isolation enable robust performance across -40 to 105 °C with up to 200 mating cycles, aligning with uptime and total cost of ownership goals.
Product Information
Extended Description

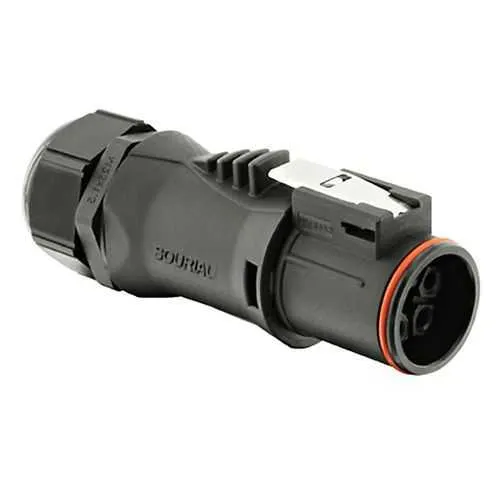

UTL6JC145S Eaton: Female plug, with cable gland backshell, 5 cavities; UTL6JC145S
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6JC145S
Product Length/Depth
36.4 mm
Product Height
36.4 mm
Product Width
36.4 mm
Product Weight
51 g
Compliances
IEC 61984 UL 1977 CSA-C22.2
Current rating
16 A UL 16 A IEC
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Environmental resistance
Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil Resistant against basic bath Resistant against oil
Test current
13 A CSA 16 A UL 16 A IEC
Test voltage
600 V CSA 600 V UL 500 V IEC
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
17 mm
Cable diameter - min
9 mm
Mating cycles
200
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
1000 hour
Feature: Five‑position (Layout 5) with Ground cavity and First Mate Last Break capability → Business Impact: Simplifies wiring, reduces installation sequencing errors, and speeds field troubleshooting. Application: Control panels and robotic sub‑assemblies where rapid, error‑free mating is essential. Feature: IP68 sealing with Sealing Gland backshell → Business Impact: Delivers reliable protection against dust, water ingress, and chemical exposure, extending service life in washdown and outdoor environments. Application: Outdoor machinery, food‑grade lines, and offshore equipment. Feature: 16 A current rating and test current up to 13 A → Business Impact: Supports typical motor and actuator loads with a safety margin, lowering relay wear and overheating in iterative cycles. Application: Conveyor systems and packaging lines. Feature: 600 V electrical rating and 5‑cavity plug layout → Business Impact: Ensures compliance across UL/IEC standards while enabling compact, scalable wiring schemes. Application: Industrial control cabinets and safety interlocks. Feature: Cable diameter range 9–17 mm and 200 mating cycles → Business Impact: Accommodates common field cables and delivers predictable lifecycle performance, reducing replacement costs. Application: High‑duty environments with frequent disconnect/reconnect cycles. Feature: Fitted with connector and straight plug, Backshell type Plastic, Shell size 14 → Business Impact: Streamlines procurement with ready‑to‑install solutions and consistent mating geometry. Application: New builds and retrofit projects needing rapid integration.
