Eaton UTL6JC145SSCR UTL series plug for UL/IEC power - IP68
Part Number: UTL6JC145SSCR
Quick Summary
Eaton UTL6JC145SSCR is a 5-cavity power and control plug for rugged industrial panels. Engineers face seals, cable strain relief, and uptime challenges in harsh environments, which can drive maintenance costs and downtime. This connector meets IEC 61984, UL 1977, and CSA-C22.2, with RoHS and REACH compliance to support global deployments and traceability. With IP68 protection, a 16 A current rating, and 500 V electrical ratings, it delivers reliable operation in demanding lines such as robotics, packaging, and material handling. The straight plug and ground-cavity layout simplify panel installation, while the 14 shell size and backshell sealing gland enable straightforward field assembly and durable performance across lifecycle phases.
Product Information
Extended Description

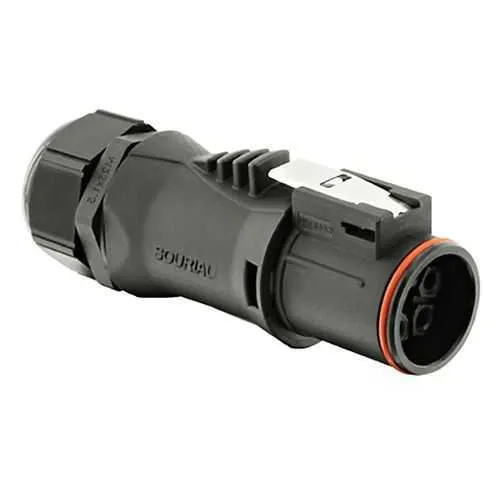

UTL6JC145SSCR Eaton: Female plug, with screw contacts and cable gland backshell, 5 cavities; UTL6JC145SSCR
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6JC145SSCR
Product Length/Depth
28.6 mm
Product Height
36.4 mm
Product Width
36.4 mm
Product Weight
57 g
Compliances
IEC 61984 UL 1977 CSA-C22.2
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Environmental resistance
Resistant against gasoline Resistant against acid bath Resistant against mineral oil Resistant against oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
13 A CSA 16 A UL 16 A IEC
Test voltage
500 V IEC 600 V CSA 600 V UL
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Loaded
Contact gender
Socket (Female)
Contact type
Screw
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
5
Plug type
Straight Plug
Shell material
Plastic
Shell size
14
Cable diameter - max
17 mm
Cable diameter - min
9 mm
Mating cycles
200
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
5
Number of cavity #16
5
Salt spray
1000 hour
Five-position insert with screw contacts and straight plug → This arrangement simplifies wiring, reduces the risk of loose connections, and improves long-term contact reliability in vibration-prone environments. Applications include control panels, machine tools, and automation gear where dependable power and signal delivery is critical. IP68 sealing and backshell with a sealing gland → Provides superior ingress protection against water and dust in wash-down or outdoor settings, reducing unplanned downtime and lowering service costs on packaging lines, outdoor equipment, and heavy-duty conveyors. Ground cavity layout and shell size 14 → Simplifies installation with defined grounding paths and a compact footprint, accelerating panel mounting in robotic cells and compact machine tools. Cable diameter range 9–17 mm with direct connector delivery → Allows direct use with common field cables, reducing adapters and spare parts while speeding field terminations on OEM lines. Electrical ratings and lifecycle → Current rating of 16 A IEC/UL with 13 A CSA test current and 500 V IEC (600 V CSA/UL) support reliable operation across industrial panels; 200 mating cycles indicate predictable lifecycle performance in repetitive connections. Durable materials and operating range → Insert in polyamide and shell in plastic withstands -40 °C to 105 °C, RoHS/REACH compliant, and IP68 protection, ensuring long service life in harsh environments across a 5-contact layout with 14 shell size and compatibility with Souriau UTL backshells.
