Eaton UTL6TH103G1P Threaded Plug - IP68, UL/IEC
Part Number: UTL6TH103G1P
Quick Summary
Eaton UTL6TH103G1P is a threaded power and control plug for UL/IEC systems in demanding industrial environments. Mismatched connectors or ingress protection gaps can lead to unplanned downtime and safety risks. It complies with IEC 61984 and UL 1977 and provides IP68 protection, ensuring reliable sealing in dusty or damp locations. With four cavities, a 16 A current rating, and a first mate last break layout with ground cavity, the device streamlines field assembly and service. Its compact footprint—49.5 mm long, 25 mm wide, and 26.1 mm high—facilitates space‑constrained installations while delivering robust performance. This makes it a dependable choice for automation panels, robotics, and machine wiring in harsh environments.
Product Information
Extended Description

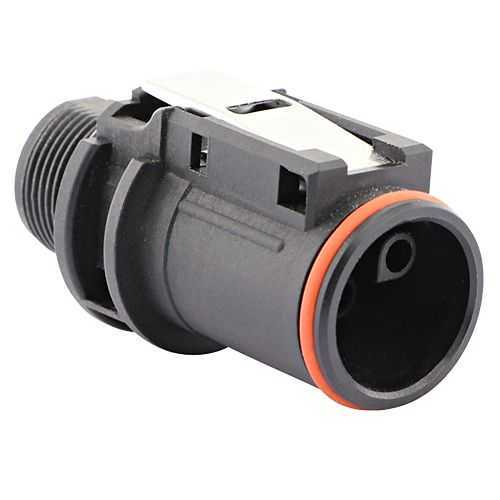

UTL6TH103G1P Eaton: Male threaded plug, without backshell and O-ring, 4 cavities; UTL6TH103G1P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6TH103G1P
Product Length/Depth
49.5 mm
Product Height
26.1 mm
Product Width
25 mm
Product Weight
17 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Environmental resistance
Resistant against oil Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against basic bath Resistant against acid bath
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
No backshell possibility
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Threaded plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
