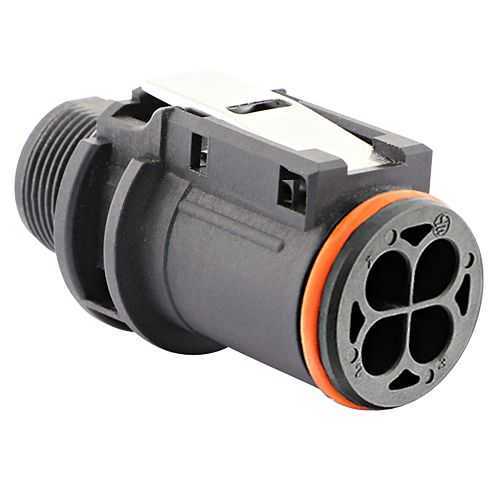

Eaton UTL6TH103G1S Power & Control Plug - IP68
Part Number: UTL6TH103G1S
Quick Summary
Eaton UTL6TH103G1S is a rugged power & control plug designed for UL/IEC enclosures in harsh industrial environments. Engineers often struggle with reliable mating, ingress protection, and field maintenance when wiring multi-cavity connectors. This model complies with IEC 61984 and UL 1977, and carries IP68 protection, supporting demanding outdoor and wash-down applications. For businesses, the 4-cavity threaded plug delivers dependable connectivity for rugged automation, enabling faster wiring, reduced downtime, and scalable installations in a 3G1 layout. The Souriau UTL series offers a compact, easy-to-service solution that aligns with standard automation panels while delivering long-term lifecycle value.
Product Information
Extended Description
UTL6TH103G1S Eaton: Female threaded plug, without backshell and O-ring, 4 cavities; UTL6TH103G1S
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL6TH103G1S
Product Length/Depth
49.5 mm
Product Height
26.1 mm
Product Width
26 mm
Product Weight
17 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against basic bath Resistant against mineral oil Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against oil
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
No backshell possibility
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Plug type
Threaded plug
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
Feature → 16 A current rating with 600 V UL and 500 V IEC limits provides reliable load handling and reduces the number of parallel connections. The 4-cavity, 3G1 layout simplifies harness routing in compact panels, cutting install time. Application: ideal for motor drives, sensors, and power distribution in automated equipment. Feature → IP68 protection and environmental resistance ensure ingress protection in wash-down and harsh environments. The design resists mineral oil, gasoline, UV exposure, and various chemical baths, extending service life in outdoor plants. Application: food & beverage lines, outdoor machinery, and offshore or remote automation installations. Feature → First mate last break capability with a ground cavity layout accelerates assembly and reduces mis-wiring risk. No backshell option improves compatibility with compact harnesses and reduces accessory inventory. Application: panel assemblies and field wiring where space is tight and quick servicing is essential. Feature → 1000 mating cycles and polyamide insert in a plastic shell offer durable performance and predictable lifecycle costs. RoHS and REACH compliance minimize regulatory risk; salt spray testing supports corrosion resistance. Application: heavy automation lines requiring long service life and regulatory compliance. Feature → Crimp contact, 4 contacts, push-pull coupling with threaded plug provide secure mating and easy disengagement. This enables quick field replacement and versatile installation in mobile equipment.
Get a Quick Quote for a Eaton UTL6TH103G1S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL6TH103G1S?
Enquire Now
FAQs
Yes. The UTL6TH103G1S is a threaded plug in a 3G1 layout with a 4-cavity configuration, designed for Souriau UTL series panel connectors. It supports first mate last break capability and ground cavity layouts to simplify wiring and reduce field errors during panel assembly.
Key specs include a 16 A current rating, 600 V (UL) / 500 V (IEC) voltage rating, 4 contacts, and crimp contact delivery. It is rated for mating cycles up to 1000 and carries IP68 protection for immersion resistance in demanding environments.
Absolutely. IP68 protection, RoHS and REACH compliance, and resistance to oils, UV exposure, and chemical baths make it suitable for outdoor plants, wash-down zones, and harsh industrial settings.
The connector complies with IEC 61984 and UL 1977, with additional RoHS and REACH compliance. This ensures regulatory alignment for many global automation and electrical applications.
With 1000 mating cycles, robust IP68 protection, and a compact 4-cavity design, maintenance and replacement are streamlined. First mate last break capability reduces wiring errors, while the durable polyamide insert minimizes wear and downtime in high-cycle automation lines.
