Eaton UTL7102G1W3P Power & Control Receptacle - IP68 Push-Pull
Part Number: UTL7102G1W3P
Quick Summary
The UTL7102G1W3P power and control receptacle enables reliable UL/IEC power distribution in rugged industrial installations. Engineers often struggle with maintaining seal integrity under vibration and achieving quick, secure field mating. It complies with IEC 61984 and UL 1977, offers IP68 sealing, and meets RoHS/REACH requirements. Designed for compact control panels and safety-critical circuits, it pairs with the 2G1W3 layout and crimp contacts to deliver cost-effective reliability in demanding environments.
Product Information
Extended Description

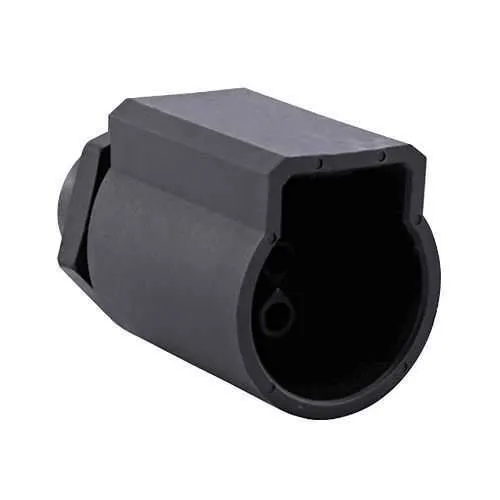

UTL7102G1W3P Eaton: Male jam nut receptacle, 2G1W3 layout; UTL7102G1W3P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL7102G1W3P
Product Length/Depth
28.6 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
17 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Resistant against gasoline Resistant against mineral oil Resistant against basic bath Resistant against oil Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W3
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Nut material
Plastic
Salt spray
1000 hour
Push-pull coupling with a jam-nut receptacle delivers fast, secure mating and a ground cavity for safety during connection, reducing downtime in high-vibration environments and enabling easier field servicing. This translates to improved maintenance efficiency, lower lifecycle cost, and reliable power and control signaling for robotics and automated machinery. The 16 A UL/IEC rating and 600 V UL/500 V IEC capability support motors and control circuits, helping you standardize on a single connector family across machines and panels. The polyamide insert and plastic shell keep weight low (17 g) without sacrificing chemical resistance, ideal for space-constrained control panels and outdoor or washdown areas. With IP68 and UV resistance, this receptacle is built to withstand harsh environments and prolonged exposure. Mating cycles reach 1000, offering predictable lifecycle performance for high-demand automation lines and reducing replacement costs over time. First mate last break capability and a dedicated ground cavity further enhance safety and ease of installation in complex wiring looms.
Get a Quick Quote for a Eaton UTL7102G1W3P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL7102G1W3P?
Enquire Now
FAQs
Yes. The UTL7102G1W3P is specified for a 2G1W3 layout and uses crimp contact delivery. It supports first mate last break capability and is designed for reliable mating in tight spaces, making it well-suited for compact control panels and automation cabinets.
The receptacle carries 16 A current rating with 600 V UL and 500 V IEC ratings, and it provides up to 1000 mating cycles. These specs support continuous operation in demanding automation environments while maintaining electrical integrity and signal reliability.
Yes. It features IP68 sealing, UV resistance, and environmental resistance against gasoline, mineral oil, and various baths. Operating temperature range from -40 °C to 105 °C ensures reliable performance in outdoor, factory floor, or washdown conditions.
It complies with IEC 61984 and UL 1977, and is RoHS/REACH compliant. These certifications support regulatory requirements for industrial equipment in many regions and help with audit readiness and supplier qualification.
The jam-nut receptacle with ground cavity and push-pull coupling reduces installation time, minimizes risk of misalignment, and simplifies field servicing. Its lightweight polyamide insert and plastic shell contribute to lower total system weight and material costs while delivering durable, long-life performance in automation applications.
