Eaton UTL7102G1W3S Receptacle - UL/IEC 16A, IP68
Part Number: UTL7102G1W3S
Quick Summary
Eaton UTL7102G1W3S is a jam-nut receptacle delivering UL/IEC power and control for rugged automation panels. In busy plants, sealing integrity, compact footprint, and resistance to vibration are common reliability bottlenecks. This unit complies with UL 1977 and IEC 61984, and carries IP68 protection to withstand immersion and dust ingress, helping you meet harsh-environment requirements. The Souriau UTL series design emphasizes first-mate-last-break capability and a ground cavity layout, delivering safer, serviceable connections. By adopting this 2G1W3, six-contact receptacle, you gain predictable performance, easier installation, and reduced maintenance costs, while remaining compatible with standard crimp terminals and field-installation practices. Use cases span automation controls, packaging lines, and industrial machinery where robust power and control links drive uptime.
Product Information
Extended Description

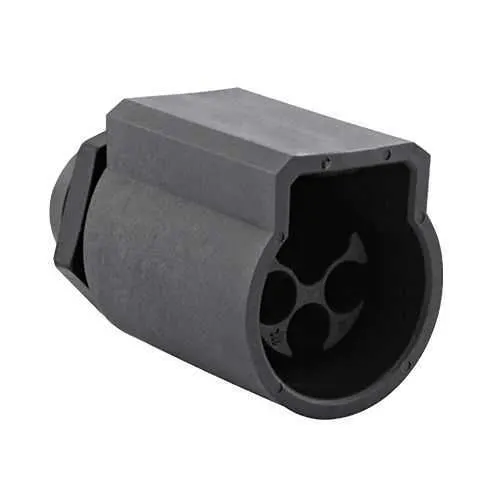

UTL7102G1W3S Eaton: Female jam nut receptacle, 2G1W3 layout; UTL7102G1W3S
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL7102G1W3S
Product Length/Depth
28.6 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
17 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Environmental resistance
Resistant against mineral oil Resistant against oil Resistant against gasoline Resistant against acid bath Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W3
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
6
Number of cavity #16
3
Number of cavity #20
3
Nut material
Plastic
Salt spray
1000 hour
