Eaton UTL7103G1P14AWG Power and Control Supply - IP68
Part Number: UTL7103G1P14AWG
Quick Summary
Eaton Souriau UTL series uL/IEC power and control supply provides rugged, compact power/control connections for industrial machinery panels. Engineers often struggle with limited cabinet space, mating reliability, and field wiring during installation. UL 1977, IEC 61984, and IP68 protection ensure safety, regulatory compliance, and dependable operation in challenging environments. The UTL7103G1P14AWG uses a jam-nut receptacle in a 3G1 layout with four male contacts for compact, scalable connectivity. This design emphasizes rugged performance, translating into reduced downtime and lower total cost of ownership for automation plants. Secondary benefits include ease of installation, robust polarity retention, and compatibility with industry-standard Souriau accessories.
Product Information
Extended Description

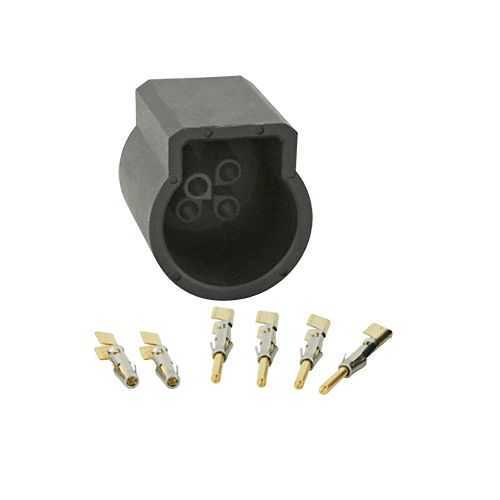

UTL7103G1P14AWG Eaton: Evaluation kit, with male jam nut receptacle and contacts, 3G1 layout; UTL7103G1P14AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL7103G1P14AWG
Product Length/Depth
28.6 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
17 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Environmental resistance
Resistant against gasoline Resistant against acid bath Resistant against oil Resistant against basic bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Plastic
Salt spray
1000 hour
The UTL7103G1P14AWG delivers a high current rating of 16 A with a 500 V IEC / 600 V UL test voltage, enabling reliable power delivery to motors, drives, and control circuits within a single compact connector. The business impact is evident in simpler harnessing and faster panel wiring, which reduces commissioning time and overall maintenance costs in automated machinery. IP68 protection and broad environmental resistance guard against washdown, oil, and UV exposure, extending service intervals and lowering replacement risk in harsh environments such as food processing, automotive, and material handling. The jam-nut receptacle design in a 3G1 layout with four contacts minimizes footprint while maintaining robust mechanical integrity, improving performance under vibration and simplifying installation in tight enclosures. With 1000 mating cycles and a -40 to 105 C operating range, this solution supports durable field service, mitigating lifecycle costs for OEMs and end users alike. The combination of plastic shell, polyamide insert, and shell size 10 delivers a rugged, lightweight footprint with easy compatibility to Souriau accessories and crimp contact termination, addressing common objections about weather resistance and maintenance cycles in industrial plants.
Get a Quick Quote for a Eaton UTL7103G1P14AWG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL7103G1P14AWG?
Enquire Now
FAQs
The UTL7103G1P14AWG uses a jam-nut receptacle in a 3G1 layout and four male crimp contacts, designed for direct panel mounting without a backshell. It supports standard Souriau accessories and has a defined mating cycle life of about 1000 cycles, making it suitable for maintenance-heavy installations while minimizing misalignment and solder-free wiring.
This receptacle is rated for 16 A per IEC and 16 A per UL, with a test voltage of 500 V IEC and 600 V UL. It features four contacts in a 3G1 layout, enabling combined power and control signals in a single interface, which reduces harness complexity and improves reliability in automation panels.
Yes. The unit offers IP68 sealing, UV resistance, and environmental durability, along with resistance to oils, acids, and gasoline. Operating temperature ranges from -40 °C to 105 °C, making it appropriate for outdoor, washdown, and high-temperature industrial settings while maintaining electrical integrity.
Industries such as automotive, robotics, machine tools, packaging, and process automation benefit due to compact 4-pin power/control connectivity, 16 A capability, and robust environmental ratings. The 3G1 layout simplifies integration with PLCs, motor drives, sensors, and I/O modules in tight control panels and distributed systems.
Technical drawings are available from Eaton on the UTL series resources, including the utl10037ac01.pdf drawing. The product is described as a jam-nut receptacle with a 3G1 layout and a four-contact configuration, supported by an evaluation kit with male jam-nut receptacle and contacts for testing and validation.
