Eaton UTL7103G1P20AWG Power and Control Supply - IP68
Part Number: UTL7103G1P20AWG
Quick Summary
UTL7103G1P20AWG is a power and control receptacle engineered for rugged industrial automation applications. Engineers often struggle with sealing, durability, and compatibility when wiring control panels in harsh environments. It carries UL 1977 and IEC 61984 certifications and IP68 protection, with RoHS and REACH compliance to support global deployments. In addition, its jam-nut receptacle design and push-pull coupling simplify installation and maintenance, aligning with cost-saving ambitions in automation projects. The 3G1 layout with four crimp contacts provides a compact yet robust solution for power and signal feed, while the 16 A / 500 V IEC (600 V UL) ratings deliver dependable performance across drives, sensors, and controllers. Designed for field service cycles up to 1000 mating operations, it minimizes downtime and replacement costs.
Product Information
Extended Description

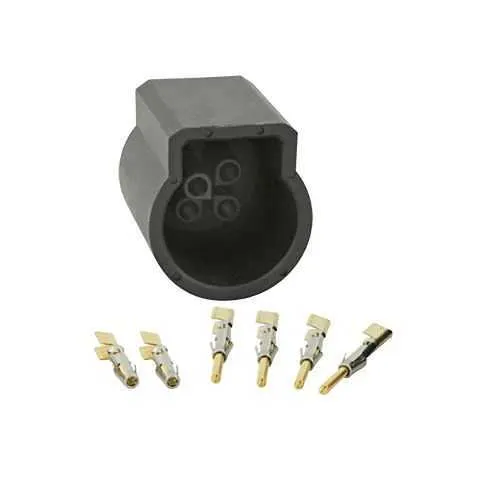

UTL7103G1P20AWG Eaton: Evaluation kit, with male jam nut receptacle and contacts, 3G1 layout; UTL7103G1P20AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL7103G1P20AWG
Product Length/Depth
45.5 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
17 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Resistant against gasoline Resistant against mineral oil Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against basic bath
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Plastic
Salt spray
1000 hour
IP68 sealing and a 3G1 layout deliver reliable protection in washdown and harsh environments, reducing ingress risk and extending equipment life in automated lines and robotic cells. This directly translates to higher uptime and lower maintenance costs as the connector tolerates exposure to moisture, oil, and dust while maintaining a solid ground cavity. The 16 A IEC / UL current rating and 500 V IEC / 600 V UL voltage ratings support combined power and control feeds in a single compact unit, simplifying harnesses and reducing wiring complexity for drives and sensors. Jam-nut receptacle mounting provides secure, vibration-resistant attachment without needing additional backshells, improving install-time efficiency and field reliability. Constructed with polyamide insert and plastic shell, the unit delivers lightweight robustness and excellent chemical resistance, with mating cycles rated at 1000 to support long-term automation deployments. Operating temperature range from -40 °C to 105 °C ensures reliability across factory floors and outdoor installations, while environmental protections such as UL94 V0 flammability rating, RoHS, and REACH compliance support compliance-driven projects and global procurement strategies.
