Eaton UTL7103G1S14AWG Power & Control Receptacle - IP68
Part Number: UTL7103G1S14AWG
Quick Summary
Eaton UTL7103G1S14AWG provides UL/IEC power and control supply for rugged industrial equipment. Engineers often struggle with sealed, corrosion‑resistant connectors that withstand oil exposure and extreme temperatures; this unit delivers reliable connectivity even in washdown and harsh environments. Compliances IEC 61984 and UL 1977, along with an IP68 ingress protection rating and a 16 A rating, reinforce safety and performance for automated systems. With a compact 28.6 mm profile and a jam-nut receptacle design, it enables quick panel integration and lowers installation and lifecycle costs in industrial automation. The 3G1 layout and push‑pull coupling support modular architectures, making sourcing, stocking, and servicing more efficient for maintenance teams and integrators.
Product Information
Extended Description

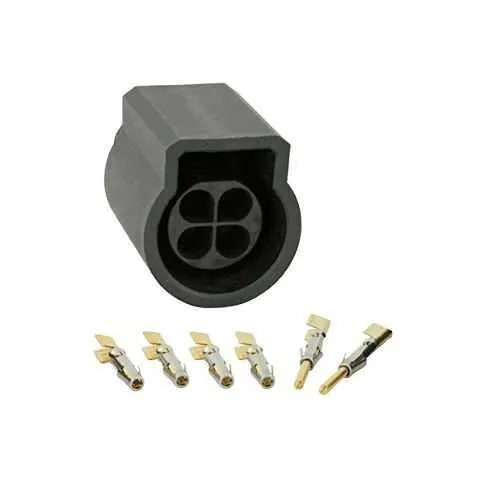

UTL7103G1S14AWG Eaton: Evaluation kit, with female jam nut receptacle and contacts, 3G1 layout; UTL7103G1S14AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL7103G1S14AWG
Product Length/Depth
28.6 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
17 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Environmental resistance
Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against acid bath Resistant against gasoline Resistant against basic bath
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Plastic
Salt spray
1000 hour
IP68 sealed jam-nut receptacle with ground cavity provides robust ingress protection and long-term reliability, reducing downtime in washdown and oil-exposed environments. This translates to lower maintenance costs and higher overall equipment effectiveness in process and industrial automation applications. The 16 A IEC/UL current rating and 500 V IEC / 600 V UL test voltages ensure safe power delivery to drives, controllers, and sensors, enabling reliable operation of automated lines and robotics. Push-Pull coupling offers fast, secure mating and simple repeated connections, which accelerates panel upgrades and field service without compromising safety or integrity. The connector uses a polyamide insert inside a plastic shell, delivering chemical and UV resistance while maintaining lightweight handling and ease of assembly in busy control rooms. With 1000 mating cycles and RoHS/REACH compliance, this receptacle supports durable, standards-aligned installations in demanding environments. The jam-nut receptacle design simplifies mounting in panels and chassis, supporting consistent alignment and reduced installation error in multi-cable ecosystems. The absence of a backshell option encourages proper enclosure design and cable strain relief planning during system integration.
Get a Quick Quote for a Eaton UTL7103G1S14AWG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL7103G1S14AWG?
Enquire Now
FAQs
The unit uses a jam-nut receptacle design with a 3G1 layout and ground cavity. Install by inserting through the panel cut-out (28.6 mm footprint) and tightening the jam nut to seal against ingress. Note the connector has no backshell option, so plan for appropriate cable strain relief and enclosure sealing in your panel design.
This receptacle is rated for 16 A (IEC and UL) with test voltages of 500 V (IEC) and 600 V (UL). It complies with IEC 61984 and UL 1977, and adheres to RoHS/REACH environmental requirements with UL94 V0 flame rating for insert materials.
Yes. It features IP68 ingress protection, RoHS/REACH compliance, UV resistance, and oil/chemical resistance. Operating range is -40 °C to 105 °C, supporting reliable performance in demanding industrial, outdoor, and washdown settings.
The UTL7103G1S14AWG is designed specifically for a 3G1 layout and uses jam-nut receptacle mounting for secure, compact panel integration. Its four crimp contacts and ground cavity support reliable, field-assembled power and control connections within Souriau’s UTL series ecosystem.
With 1000 mating cycles, durable polyamide insert, and resistance to environmental stressors (salt spray up to 1000 hours, UV and oil resistance), the connector reduces replacement frequency and downtime. The push-pull coupling speeds maintenance and panel swaps, improving uptime and lowering total cost of ownership in automation projects.
