Eaton UTL7103G1S16AWG Power & Control Supply - IP68
Part Number: UTL7103G1S16AWG
Quick Summary
The Eaton Souriau UTL7103G1S16AWG is a UL/IEC power and control supply for rugged industrial automation. Engineers often struggle with sealing, vibration, and reliable mating in harsh environments, leading to unplanned downtime and maintenance costs. This unit complies with IP68 protection and regulatory standards such as UL 1977 and IEC 61984, ensuring safety and reliability in challenging settings. Its jam-nut receptacle with a 3G1 layout delivers fast, secure power and control connections, while crimp contacts and a plastic shell support easy field maintenance in automation lines. Designed for installation in tight enclosures and on equipment where space is at a premium, the solution also facilitates quick diagnostics and straightforward replacement when servicing aging systems.
Product Information
Extended Description

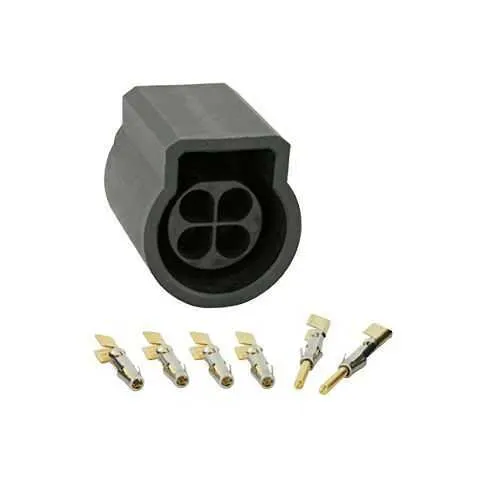

UTL7103G1S16AWG Eaton: Evaluation kit, with female jam nut receptacle and contacts, 3G1 layout; UTL7103G1S16AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL7103G1S16AWG
Product Length/Depth
44 mm
Product Height
28.6 mm
Product Width
25.6 mm
Product Weight
17 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
Layout with ground cavity First mate last break capability
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Environmental resistance
Resistant against basic bath Resistant against gasoline UV resistant, no degradation after 5 years of exposure in natural environment Resistant against acid bath Resistant against oil Resistant against mineral oil
Test current
16 A UL16 A IEC
Test voltage
500 V IEC 600 V UL
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Plastic
Salt spray
1000 hour
Feature → Business Impact → Application: High current rating and voltage tolerance supports robust power delivery and reduced overcurrent risk, enabling simplified electrical design for 16 A IEC/UL operation up to 500 V IEC and 600 V UL. This translates to fewer parts, lower installation time, and greater system uptime in automated production lines. Application: machine tools, robotics, and packaging equipment requiring reliable power for motive and control circuits. Feature → Business Impact → Application: Four contacts in a 3G1 layout with a jam nut receptacle and first mate last break capability streamline harnessing and field maintenance. Benefit: faster panel assembly, easier field replacements, and reduced miswiring during maintenance cycles. Application: control panels and distributed I/O in conveyor lines and automated cells. Feature → Business Impact → Application: IP68 environmental protection plus UV, oil, and chemical resistance ensures dependable operation in wash-down and outdoor settings. Impact: extended service intervals and lower life-cycle costs in harsh environments. Application: food & beverage lines, outdoor machinery, and packaging equipment with demanding exposure. Feature → Business Impact → Application: Wide operating temperature range (-40 °C to 105 °C) and 1,000 mating cycles deliver durable connectivity under vibration and temperature swings. Benefit: minimizes unplanned downtime and testing, increasing line throughput. Application: robotics, motor drives, and automation gear in fluctuating climates. Feature → Business Impact → Application: Polyamide insert, plastic shell, and salt-spray durability support long-term reliability and resistance to environmental stress. Benefit: reduced maintenance and replacement costs over the product’s life. Application: durable connectors for preventative maintenance programs and critical control signals.
