Eaton UTL7103G1S20AWG Power Receptacle - IP68
Part Number: UTL7103G1S20AWG
Quick Summary
UTL7103G1S20AWG is a power and control supply receptacle designed for rugged industrial automation harnesses in machinery. Engineers often face unreliable mating, exposure to oils and chemicals, and time-consuming field wiring. It complies with UL 1977 and IEC 61984, and features IP68 sealing to withstand washdowns and harsh environments. This part of the Eaton Souriau UTL series combines a 3G1 layout and jam-nut receptacle geometry for secure, field-installable connections. The 4-position configuration supports reliable power and control pathways while maintaining compact footprint. For OEMs and maintenance teams, the robust materials, wide operating temperature range, and durable mating cycles translate into lower maintenance costs and fewer downtime events.
Product Information
Extended Description

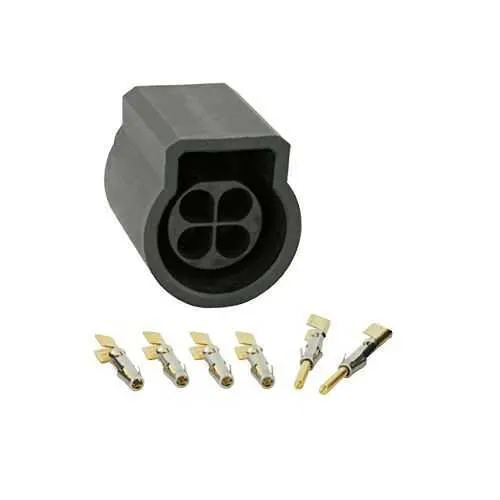

UTL7103G1S20AWG Eaton: Evaluation kit, with female jam nut receptacle and contacts, 3G1 layout; UTL7103G1S20AWG
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL7103G1S20AWG
Product Length/Depth
45.5 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
17 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Environmental resistance
Resistant against oil Resistant against basic bath Resistant against acid bath UV resistant, no degradation after 5 years of exposure in natural environment Resistant against gasoline Resistant against mineral oil
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Nut material
Plastic
Salt spray
1000 hour
IP68 sealing and jam-nut receptacle design deliver superior ingress protection. This reduces field failures from dust, water, and oils in harsh manufacturing environments, improving uptime for machine tools, conveyors, and packaging lines. High current rating of 16 A at UL and IEC voltages enables simpler, fewer-cable runs and more compact control panels, cutting assembly time and wiring complexity on automation systems. Push-Pull coupling with a 3G1 layout provides fast, secure mating, which translates to quicker panel wiring, easier field maintenance, and minimized risk during reconfiguration in robotics and material handling applications. With 1000 mating cycles and 4 cavities, this connector supports durable, long-life operation in demanding production floors, reducing replacement costs and downtime. Oil/chemical/UV resistance and RoHS/REACH compliance also lower total cost of ownership by extending service life in outdoor and washdown environments. The receptacle’s polyamide shell and plastic nut deliver lightweight, corrosion-resistant performance that simplifies installation and maintenance for OEMs and service teams alike.
Get a Quick Quote for a Eaton UTL7103G1S20AWG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTL7103G1S20AWG?
Enquire Now
FAQs
The kit features a jam-nut receptacle with four female crimp contacts in a 3G1 layout, designed for first mate last break capability. It supports a ground cavity and unloaded contact delivery, enabling straightforward field assembly for power and control circuits.
The receptacle is rated for 16 A, with a 600 V rating per UL and 500 V per IEC. It uses crimp contacts and is designed for robust power delivery in industrial panels and machinery.
It complies with UL 1977 and IEC 61984, supports RoHS and REACH environmental requirements, and offers IP68 sealing with resistance to oils, basic and acid baths, plus UV exposure for long-term durability.
Yes, it uses the 3G1 layout and jam-nut receptacle design common to the UTL family, enabling quick installation and reliable mating across compatible Souriau connectors with minimal tools, reducing commissioning time.
Ideal for machine control power feeds, robotics, conveyors, and power distribution panels where IP68 protection, stable mating, and high-current capability reduce maintenance needs and extend uptime on harsh production floors.
