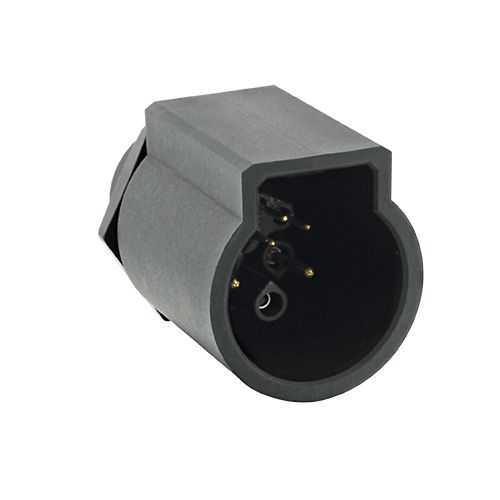

Eaton UTL7122G1W5P Receptacle - IP68 UL/IEC Rated
Part Number: UTL7122G1W5P
Quick Summary
Eaton UTL7122G1W5P is a power and control receptacle for industrial automation panels. Engineers often struggle with reliable mating and environmental resistance in harsh settings, especially under washdown, vibration, and wide temperatures. UL 1977 and IEC 61984 certifications support safe, interoperable use, while IP68 sealing protects against dust and water ingress. The design also emphasizes a robust 16 A rating and 8‑contact layout, delivering dependable power and control across demanding applications. This combination of reliability and ease of installation translates into reduced maintenance costs and faster time-to-value for panel builders and integrators.
Product Information
Extended Description
UTL7122G1W5P Eaton: Male jam nut receptacle, 2G1W5 layout; UTL7122G1W5P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL7122G1W5P
Product Length/Depth
45.5 mm
Product Height
28.8 mm
Product Width
31.9 mm
Product Weight
23 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Resistant against acid bath Resistant against basic bath Resistant against gasoline Resistant against mineral oil Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Test voltage
600 V UL 500 V IEC
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
2G1W5
Shell material
Plastic
Shell size
12
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
8
Number of cavity #16
3
Number of cavity #20
5
Nut material
Plastic
Salt spray
1000 hour
Feature: 16 A current rating with 600 V UL and 500 V IEC ratings. Benefit: Supports high-power control circuits in compact panels, reducing the need for parallel terminations and simplifying wiring. Application: Industrial automation cabinets where space and reliability matter. Feature: IP68 protection and durable environmental resistance. Benefit: Withstands washdowns, UV exposure, acids, bases, and mineral oil contact, extending service life in challenging environments. Application: Food processing lines, outdoor machinery, and washdown environments. Feature: Jam Nut Receptacle in a 2G1W5 layout with 8 contacts. Benefit: Compact, secure mounting and flexible wiring options for 3 x #16 and 5 x #20 cavities, enabling efficient harness routing. Application: Machinery enclosures and control panels requiring tight, rugged connections. Feature: Push-Pull coupling and first mate last break capability. Benefit: Quick, vibration‑resistant mating with predictable disconnection behavior, reducing maintenance time. Application: Retrofit projects and high‑vibration machinery. Feature: Insert material Polyamide and Shell material Plastic with salt spray resistance of 1000 hours. Benefit: Corrosion resistance and long-term durability in harsh environments. Application: Outdoor or washdown environments where connector longevity matters. Feature: 1000 mating cycles. Benefit: Lower replacement costs and predictable lifecycle performance. Application: Routine maintenance cycles in automation lines.
