Eaton UTL7145P Jam Nut Receptacle - IP68 UL/IEC
Part Number: UTL7145P
Quick Summary
Eaton UTL7145P is a jam nut receptacle delivering power and control connections in industrial machinery. Design teams often wrestle with rugged connectors that fail under harsh temps, moisture, and vibration. This family complies with UL 1977, CSA-C22.2, and IEC 61984, and carries IP68 protection for demanding environments. Engineered for moisture ingress resistance and vibration tolerance, it reduces rework and downtime in automation lines. With five positions and a compact 36 mm form factor, it streamlines panel layouts while supporting fast, reliable field installation. Ideal for motor drives, robotics, and process equipment, the UTL7145P offers a consistent, scalable power and control solution across OEMs.
Product Information
Extended Description

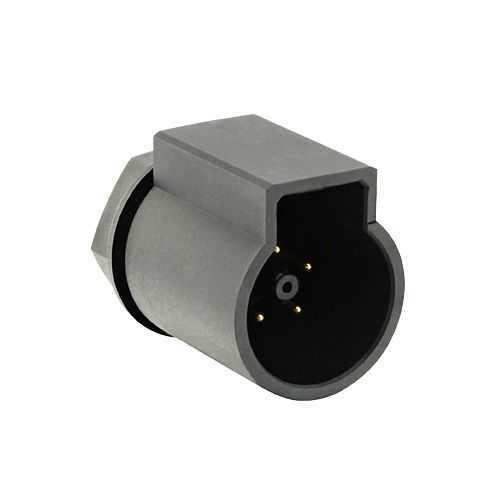

UTL7145P Eaton: Male jam nut receptacle, 5 cavities; UTL7145P
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTL7145P
Product Length/Depth
36 mm
Product Height
36 mm
Product Width
36 mm
Product Weight
24 g
Compliances
UL 1977 CSA-C22.2 IEC 61984
Current rating
16 A IEC 16 A UL
Fitted with:
First mate last break capability Layout with ground cavity
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Environmental resistance
Resistant against gasoline Resistant against acid bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment Resistant against mineral oil Resistant against basic bath
Test current
13 A CSA 16 A UL 16 A IEC
Test voltage
600 V CSA 600 V UL 500 V IEC
Connector accessory option
No backshell possibility
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
5
Shell material
Plastic
Shell size
14
Mating cycles
200
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Jam Nut Receptacle
Number Of Contacts
5
Number of cavity #16
5
Nut material
Plastic
Salt spray
1000 hour
Five-position jam-nut receptacle with five cavities and a compact 36 mm form factor streamlines wiring and panel layouts, while the ground cavity layout and First Mate Last Break capability improve safe maintenance and fault isolation. This leads to faster assembly and reduced wiring errors in automation cabinets. The IP68 rating and material resistance to gasoline, acids, oils, and UV exposure ensure long-term reliability in washdown and outdoor environments, translating to lower replacement costs and less downtime. With a 16 A current rating and 600 V test voltage, the connector supports typical automation loads without overdesign, enabling cost-effective panel design for drives and sensors. Push-Pull coupling provides quick, secure mating and disconnection, minimizing onsite service time. Lightweight polyamide inserts and a plastic shell keep weight and cost in check while delivering robust performance in 200 mating cycles. RoHS/REACH compliance and UL/IEC certifications streamline cross-regional approvals for global deployments in robotics, process control, and material handling.
