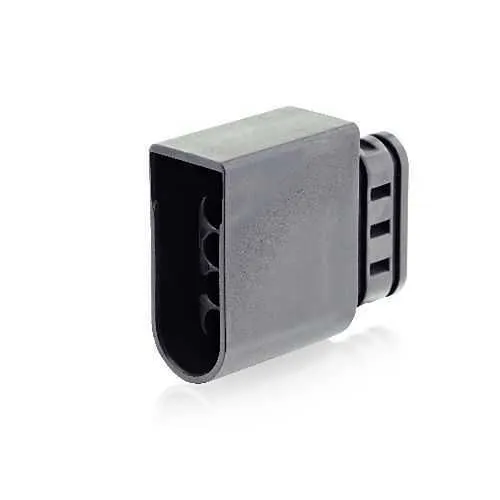

Eaton UTLR1103G1S01 UTL Power and Control Supply - UL1977
Part Number: UTLR1103G1S01
Quick Summary
The Eaton UTLR1103G1S01 UTL Power and Control Supply delivers a compact in-line receptacle solution for UL/IEC powered equipment. Sourcing a reliable interface that survives harsh environments and frequent connections is a common procurement challenge. UL 1977 and IEC 61984 certifications, along with IP68 sealing and RoHS/REACH compliance, help ensure safety, reliability, and regulatory alignment. The 4-pole, 3G1 design with a 16 A rating enables efficient power distribution in tight panel spaces, reducing install time. For engineers and procurement teams, the combination of compact size, robust environmental resistance, and standard-compliant performance translates into faster commissioning and lower lifecycle risk.
Product Information
Extended Description
UTLR1103G1S01 Eaton: Female in-line receptacle, 3G1 layout, UTLR1103G1S01
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTLR1103G1S01
Product Length/Depth
46.5 mm
Product Height
37.5 mm
Product Width
16.6 mm
Product Weight
10 g
Compliances
UL 1977 (please contact us for more details) IEC 61984 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Number Of Poles
4-pole
Environmental resistance
Resistant against oil Resistant against gasoline Resistant against basic bath Resistant against acid bath Resistant against mineral oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Connector accessory option
Only to be overmolded
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
In-Line Receptacle Jam Nut Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
The IP68 sealing and environmental resistance of the UTLR1103G1S01 deliver real value in harsh settings where water, dust, and chemical exposure are routine. This translates to less downtime and longer intervals between maintenance, particularly on conveyors, outdoor machinery, and robotic cells where ingress protection is critical. The 4-pole configuration with 16 A UL/IEC current rating provides reliable power and control signaling in a single, compact footprint, enabling tighter control panels and faster wiring. Push-Pull coupling and a jam-nut receptacle option simplify installation in constrained enclosures, while crimp contacts ensure secure connections with minimal field error. The polyamide insert and plastic shell resist oil, UV exposure, and broad temperatures, supporting long service life in industrial environments. With 1000 mating cycles and RoHS/REACH compliance, lifecycle cost and regulatory risk are minimized for panel builders and machine integrators.
Get a Quick Quote for a Eaton UTLR1103G1S01
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTLR1103G1S01?
Enquire Now
FAQs
Yes. The UTLR1103G1S01 uses a standard 4-pole inline receptacle with a 3G1 layout and Push-Pull coupling, designed to integrate with UL 1977 and IEC 61984 compliant panels. The jam-nut receptacle option supports secure mounting in tight spaces, while crimp contacts simplify field termination without special tools.
The connector is rated for 16 A per UL and IEC standards, with a 4-pole configuration and 1000 mating cycles. It operates from -40 °C to 105 °C and carries IP68 protection, making it suitable for demanding automation environments where reliable power and control signals are essential.
Yes. IP68 sealing, oil and chemical resistance, and UV stability in the environmental resistance spec protect against moisture, oil, gasoline, and UV exposure. This makes the UTLR1103G1S01 well-suited for outdoor equipment and production lines with frequent washdowns or solvent exposure.
This connector carries UL 1977 and IEC 61984 approvals, along with RoHS/REACH environmental compliance. These certifications help guarantee electrical compatibility, safety, and material compliance in regulated industrial settings, simplifying panel approvals and supplier qualification.
The Push-Pull coupling enables quick mating and unmating, reducing maintenance downtime. With 1000 mating cycles and a compact 4-pole design, installation is faster and space-efficient, lowering panel costs and improving overall equipment uptime and total cost of ownership for automation projects.
