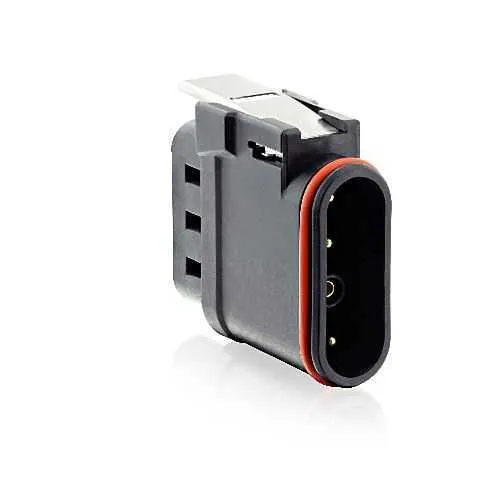

Eaton UTLR6103G1P01 Power & Control Plug - IP68
Part Number: UTLR6103G1P01
Quick Summary
Eaton UTLR6103G1P01 is a power and control supply plug designed for rugged industrial environments. Engineers often grapple with unreliable connections in harsh manufacturing floors; this unit delivers robust IP68 sealing and long-term mating reliability. It complies with IEC 61984 and UL 1977, plus RoHS and REACH, providing traceable standards and risk reduction. The 16 A rating and 3G1 layout support demanding automation panels while minimizing footprint. Designed for machine builders and integrators, it helps reduce downtime and simplify maintenance in demanding systems.
Product Information
Extended Description
UTLR6103G1P01 Eaton: Male plug, 3G1 layout, UTLR6103G1P01
Product Name
Eaton Souriau UTL series uL/IEC power and control supply
Catalog Number
UTLR6103G1P01
Product Length/Depth
39.4 mm
Product Height
33.5 mm
Product Width
8.2 mm
Product Weight
10 g
Compliances
IEC 61984 (please contact us for more details) UL 1977 (please contact us for more details)
Current rating
16 A UL 16 A IEC
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Number Of Poles
4-pole
Environmental resistance
Resistant against mineral oil Resistant against acid bath Resistant against gasoline Resistant against basic bath Resistant against oil UV resistant, no degradation after 5 years of exposure in natural environment
Test current
16 A UL16 A IEC
Connector accessory option
Only to be overmolded
Connector type
Plug
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Insert material
Polyamide
Layout
3G1
Shell material
Plastic
Shell size
10
Mating cycles
1000
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
In-Line Receptacle
Number Of Contacts
4
Number of cavity #16
4
Salt spray
1000 hour
IP68 protection reduces ingress-related failures in outdoor and dirty environments, delivering dependable performance in hostile settings and lowering field service costs. The four-pole, 16 A configuration with a 3G1 layout aligns power and control signals in compact spaces, enabling tighter control cabinets and faster panel assembly. Push-Pull coupling speeds field disconnections without tools, improving maintenance efficiency and minimizing machine downtime, while crimp contacts ensure reliable, low-resistance connections under vibration. The polyamide insert and plastic shell provide a durable, lightweight construction that resists oils, UV exposure, and typical industrial contaminants, supporting RoHS and REACH compliance for safer operations. With a mating cycle rating of 1000, the solution supports longer service life between replacements, reducing lifecycle cost. Compatibility with overmolded connector accessories offers a secure, vibration-resistant seal in harsh environments, ideal for inline receptacles in automation panels and machinery housings.
Get a Quick Quote for a Eaton UTLR6103G1P01
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTLR6103G1P01?
Enquire Now
FAQs
The UTLR6103G1P01 is a 4-pole inline plug designed for 3G1 layouts with crimp contacts and Push-Pull coupling. It should be mated with compatible UTL series receptacles, installed in environments that support IP68 protection, and used with the appropriate overmolded accessories if required by the application.
This connector supports a 16 A current rating (UL and IEC), with 4 contacts in a 4-cavity configuration. It is designed for reliable power and control signaling in demanding automation panels.
Yes. It features IP68 sealing and environmental resistance against mineral oil, acids, gasoline, basic baths, and UV exposure. It also meets RoHS and REACH requirements for safe operation in harsh industrial settings.
Compliance includes IEC 61984 and UL 1977, with RoHS and REACH compliance. Filtration and flammability are supported by UL94 V0 ratings for the materials used.
With a mating cycle rating of 1000 and Push-Pull disconnect, it reduces maintenance downtime and field replacements. Its rugged materials and sealing help lower total cost of ownership in automation applications.
