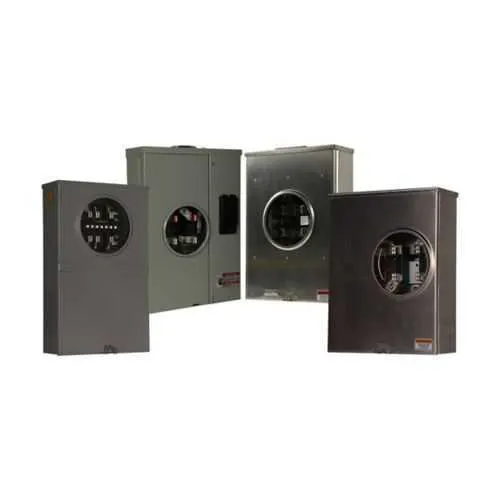

Eaton UTNE5GCCH Meter Socket - UL Listed, 600V
Part Number: UTNE5GCCH
Quick Summary
The Eaton UTNE5GCCH meter socket is a reliable single-position service device for commercial or residential use. It addresses common installation challenges, including compatibility with varied service equipment and the need for straightforward retrofits. This meter socket carries UL Listed certification and supports a 600 V, single‑phase rating with a seven‑jaw engagement and ringless design for safer, cleaner installations. With top/bottom feed options and a 125 A rating, it accommodates a wide range of service configurations while reducing labor time and field adjustments. For engineers and procurement teams, the UTNE5GCCH translates to predictable performance, standardized connections, and a clear path to code‑compliant metering installations across projects.
Product Information
Extended Description
UTNE5GCCH Eaton: Eaton meter socket, 1-pos commercial or resi service, 125A, Over/under, 3-5/16 inch hub cover plate, #6-350 kcmil, 7-jaw, 1-ph, #14-2 AWG, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTNE5GCCH
UPC
786685362236
Product Length/Depth
50 in
Product Height
15 in
Product Width
6 in
Product Weight
50 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Special features
LBP on end section
Type
Single-position commercial or residential service
Amperage Rating
125A
Feed type
Top/bottom
Number of jaws
Seven-jaw
Phase
Single-phase
Line
#6-350 kcmil
Load
#14-2/0 AWG
Number of wires
Three-wire
Hub type
3-5/16 in hub cover plate
Security
Ringless
Voltage rating
600 V
Bypass
Lever
Number of sockets
5
Feature: 125 A amperage rating and 600 V single‑phase operation with a seven‑jaw design. Business impact: provides robust service capability and reliable fault tolerance for commercial and residential metering projects, reducing the need for field substitutions. Application: ideal for new installations and retrofits where a compact, high‑integrity meter socket is required. Feature: Top/bottom feed compatibility. Business impact: flexible installation options save time during wiring and permit easier future service adjustments or expansions. Application: supports both service entrance configurations in multi‑tenant buildings and standalone commercial meters. Feature: Ringless, 3‑5/16 in hub cover plate. Business impact: safer, sleeker installations with cleaner enclosures and easier inspection access. Application: retrofit projects and new builds aiming for compliant, neat metering assemblies. Feature: Lever bypass and 7‑jaw sockets. Business impact: simplifies service testing and maintenance while ensuring a secure, low‑loss connection. Application: rapid diagnostics and routine metering checks in busy electrical rooms. Feature: Dimensions and weight (50 in L × 15 in H × 6 in W, ~50 lb). Business impact: manageable handling and installation in constrained spaces, reducing crane or forklift requirements. Application: site installations with limited clearance or transport constraints. Feature: Warranty and certifications. Business impact: reduces risk with a one‑year warranty (or 18 months from shipment) and UL Listed safety compliance. Application: procurement and QA processes requiring documented protection and standards alignment.
Get a Quick Quote for a Eaton UTNE5GCCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTNE5GCCH?
Enquire Now
FAQs
The UTNE5GCCH is a 1‑phase, 125 A meter socket designed for both top and bottom feed configurations and a three‑wire load. It uses a seven‑jaw design and supports #6–350 kcmil conductors on the line side with #14–2/0 AWG on the load side, making it adaptable to a wide range of service entrances and panel layouts.
Key specs include 125 A amperage, 600 V voltage rating, single‑phase operation, 3‑wire configuration, and seven‑jaw sockets. It features a 3‑5/16 in hub cover plate and ringless security, with top/bottom feed capability to fit diverse installation scenarios.
Yes. Its 125 A rating, 600 V capability, and single‑phase design are appropriate for both commercial and residential service meters. The unit’s compact footprint, hub cover plate, and lever bypass support safe, efficient metering in multifamily buildings, offices, and retail spaces.
The UTNE5GCCH carries UL Listed certification, indicating compliance with recognized electrical safety standards and code requirements for meter sockets used in commercial and residential applications.
Eaton provides a warranty policy of one year from installation or eighteen months from shipment, whichever occurs first, along with product support and access to specification sheets for project documentation.
