Eaton UTP10DCG IP65 Connector - IP65 Sealing Solution
Part Number: UTP10DCG
Quick Summary
The Eaton UTP10DCG IP65 connector provides sealed electrical connections for rugged industrial automation applications. Maintenance downtime and ingress risks are common pain points on harsh floors and outdoor equipment, which this design helps mitigate with robust moisture protection and straightforward field servicing. It supports IP65 protection, RoHS compliance, and UL94 V0 flame rating, with REACH compliance contributing to safer, globally portable products. By pairing a lightweight plastic housing with a 1/3 bayonet coupling and Souriau UTP compatibility, this connector enables faster assembly, reduced tooling needs, and lower total cost of ownership across modular automation architectures and international supply chains.
Product Information
Extended Description

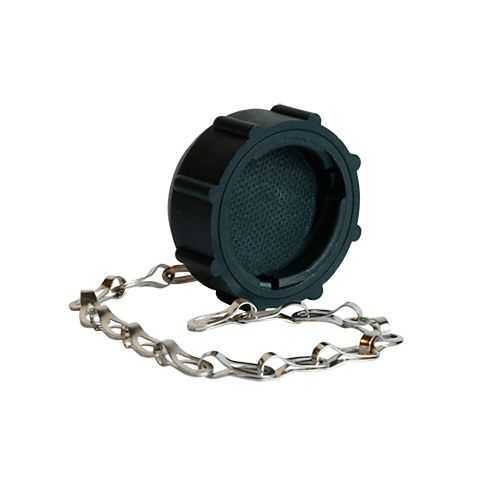

UTP10DCG Eaton: Plastic sealed receptacle dusctap, size 10; UTP10DCG
Product Name
Eaton Souriau UTP series economical lightweight IP65 connector
Catalog Number
UTP10DCG
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Backshell type
Sealing Gland
Coupling type
1/3 Bayonet
Shell size
10
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
IP65 sealing and backshell protection deliver tangible uptime gains by preventing dust and water ingress in demanding environments, such as outdoor conveyors and washdown areas; this reduces corrective maintenance and extends component life. The 1/3 bayonet coupling facilitates quick mating and desocking, cutting labor time during installation and field servicing while maintaining secure, vibration-resistant connections for high-duty cycles in robotics and process lines. The lightweight plastic sealed receptacle lowers overall system weight and material costs, enabling easier handling and compatibility with portable equipment without sacrificing environmental protection. The operating temperature range of -40 °C to 105 °C ensures reliable operation in extreme climates, from cold industrial facilities to high-heat machinery rooms, supporting global deployments and reducing thermal-related failures. Regulatory compliance, including REACH, RoHS, and UL94 V0, minimizes supply-chain risk and simplifies cross-border approvals, accelerating time-to-market for OEMs. As part of the Souriau UTP family, it offers proven compatibility with existing asembly tools and backshell configurations, enabling seamless upgrades and stock optimization for distributors and original equipment manufacturers.
Get a Quick Quote for a Eaton UTP10DCG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTP10DCG?
Enquire Now
FAQs
Yes. The UTP10DCG is designed as part of the Souriau UTP family and uses a sealing gland backshell. It supports standard Souriau mounting patterns and can mate with compatible receptacles, improving interoperability across existing panels, harnesses, and field-installation kits while preserving IP65 integrity during assembly.
It operates from -40 °C to 105 °C and carries an IP65 rating, meaning it is dust-tight and protected against water jets. This combination supports reliable performance in outdoor, dusty, or washdown environments, reducing thermal and environmentalrelated failures in automation and machinery.
Yes. The IP65 sealing, Sealing Gland backshell, and corrosion-resistant plastic housing provide a robust solution for outdoor automation, conveyor systems, and robotic cells weathering dust, splashes, and routine cleaning, while maintaining quick field servicing and consistent mating performance.
It complies with REACH, RoHS, and UL94 V0 flammability ratings. These certifications reduce regulatory risk, simplify cross-border supplier qualification, and support safe, compliant installations in diverse geographic markets for OEMs and integrators.
The combination of lightweight housing, quick 1/3 bayonet coupling, and sealed performance reduces labor for mating cycles and minimizes downtime. Its durable construction and regulatory compliance lower warranty and field-service costs, delivering a favorable total cost of ownership in high-cycle automation environments.
