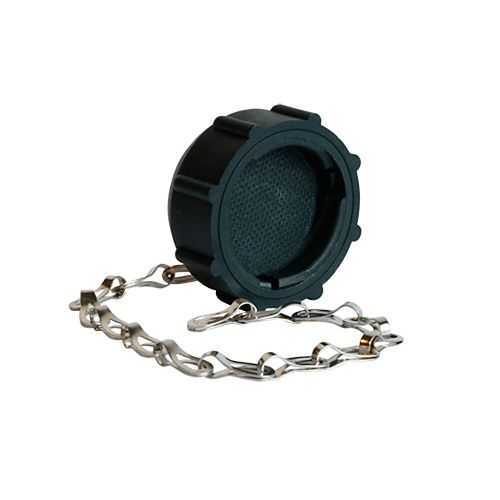

Eaton UTP20DCG IP65 Connector - UL94 V0, 1/3 Bayonet
Part Number: UTP20DCG
Quick Summary
The Eaton UTP20DCG IP65 connector delivers rugged, sealed connectivity for industrial automation and outdoor equipment. Engineers often struggle with moisture ingress, downtime, and costly field repairs in harsh environments. This solution offers IP65 protection, RoHS and REACH compliance, and UL94 V0 flame rating, paired with a Sealing Gland backshell for reliable sealing. Its lightweight design and 1/3 bayonet coupling reduce installation time while delivering dependable performance in automation assemblies. Designed for compatibility with the Souriau UTP series, it supports rapid deployment across machine tools and conveyance systems, helping manufacturers simplify sourcing and shorten project timelines.
Product Information
Extended Description
UTP20DCG Eaton: Plastic sealed receptacle dusctap, size 20; UTP20DCG
Product Name
Eaton Souriau UTP series economical lightweight IP65 connector
Catalog Number
UTP20DCG
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Backshell type
Sealing Gland
Coupling type
1/3 Bayonet
Shell size
20
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
IP65 sealing with a Sealing Gland backshell and 1/3 bayonet coupling is engineered to prevent moisture and dust ingress. The business impact is a measurable reduction in field failures and downtime for rugged automation equipment. It’s an ideal fit for outdoor control panels, conveyors, and hoods in harsh environments. Lightweight plastic housing reduces installed weight and handling effort. The business impact includes lower labor costs during assembly and easier mounting in tight spaces, which is especially valuable for machine builders deploying compact, multi-connector junctions on automated lines. Regulatory compliance features RoHS and REACH, plus UL94 V0 flame rating, simplifying approvals and enhancing safety in factory floors and service environments. The business impact is smoother audits and safer operations on packaging lines, automotive subassemblies, and general industrial automation. Compatibility with the Souriau UTP series ensures inventory consistency and straightforward spares management. The business impact is reduced stockouts and streamlined procurement on multi-vendor lines. The operating range from -40 °C to 105 °C supports operation in extreme climates, delivering reliable performance on mining equipment, water treatment systems, and outdoor machinery where ambient conditions vary.
Get a Quick Quote for a Eaton UTP20DCG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTP20DCG?
Enquire Now
FAQs
The UTP20DCG uses a 1/3 bayonet coupling and Sealing Gland backshell, designed to mate with UTP-series receptacles. Alignment is straightforward; rotate to engage, then secure with the backshell to maintain IP65 sealing. It fits standard shell size 20 systems and supports common Souriau 1/3 bayonet mating practices, simplifying procurement and field replacements. Ensure proper alignment to maintain the seal during installation.
The UTP20DCG operates from -40 °C to 105 °C, making it suitable for extreme ambient conditions. It is RoHS and REACH compliant and carries a UL94 V0 flame rating. The assembly provides IP65 ingress protection, ensuring reliable performance in dusty or wet environments such as outdoor enclosures and rugged automation equipment.
Yes. The IP65 sealing, Sealing Gland backshell, and lightweight design make the UTP20DCG well-suited for outdoor automation equipment, including control panels, conveyors, and weather-exposed machinery. The combination of protective sealing and easy installation minimizes downtime and maintenance costs while maintaining reliable connectivity in challenging environments.
The UTP20DCG carries RoHS and REACH compliance and UL94 V0 flame rating, supporting regulatory needs in many regions. Its IP65 protection also helps meet environmental ingress standards for industrial equipment exposed to dust and water, contributing to safety and reliability in factory and field installations.
By providing IP65 sealing, 1/3 bayonet mating, and a Sealing Gland backshell in a lightweight package, the UTP20DCG reduces maintenance downtime and simplifies field replacements. Its compatibility with the Souriau UTP series lowers spare-part diversity, while robust environmental ratings minimize unplanned service events, driving lower total cost of ownership over the lifecycle of automated lines and equipment.
