Eaton UTP22DCG Connector - IP65 Sealed Bayonet
Part Number: UTP22DCG
Quick Summary
UTP22DCG is a lightweight IP65 sealed connector designed for rugged industrial automation. Engineers often wrestle with unreliable, moisture-prone connections in harsh environments, leading to costly downtime and field failures. This variant carries RoHS, UL94 V0 flammability, and REACH compliance to streamline approvals and enhance safety. By leveraging Souriau's UTP ecosystem with a 1/3 bayonet coupling, it delivers fast, repeatable mating and robust sealing. The resulting business value includes reduced maintenance costs, quicker installation, and improved system reliability across assembly lines and outdoor equipment.
Product Information
Extended Description

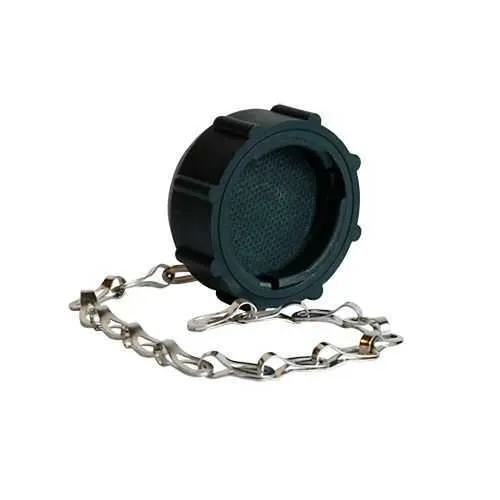

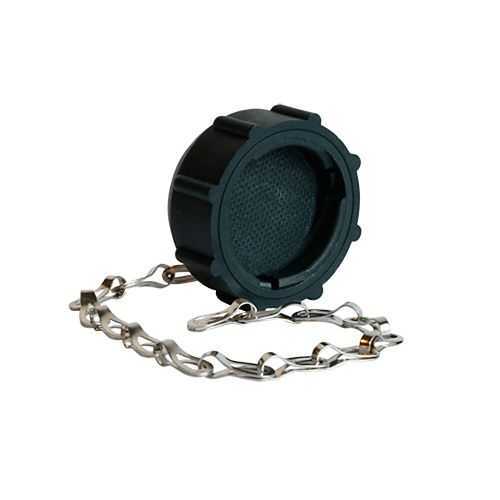

UTP22DCG Eaton: Plastic sealed receptacle dusctap, size 22; UTP22DCG
Product Name
Eaton Souriau UTP series economical lightweight IP65 connector
Catalog Number
UTP22DCG
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Backshell type
Sealing Gland
Coupling type
1/3 Bayonet
Shell size
22
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
The IP65 sealed housing with a Sealing Gland backshell provides dust and water ingress protection, translating to fewer field failures and longer service life in outdoor or dusty environments. In practice, this reduces maintenance costs and downtime on conveyors, packaging lines, and outdoor machinery. The 1/3 Bayonet coupling enables fast, tool-free mating and unmating, limiting production-line stoppages and accelerating service on field-installed systems. This feature supports rapid swaps during line changeovers and simplifies on-site repairs in remote locations. RoHS, REACH compliance, and UL94 V0 flammability ensure regulatory approvals and safety across regulated industries, making audits smoother and installations safer for operators. The wide operating temperature range from -40 °C to 105 °C expands applicability to extreme climates and high-temperature environments without performance loss. Shell size 22 and compatibility with the Souriau UTP family ensure interoperability across existing or planned equipment, reducing headcount for diverse parts and accelerating procurement. Lightweight plastic construction lowers total cost of ownership by reducing weight in moving assemblies and enabling easier handling during installation.
Get a Quick Quote for a Eaton UTP22DCG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTP22DCG?
Enquire Now
FAQs
The UTP22DCG uses a 1/3 Bayonet coupling and a shell size 22 to ensure precise alignment with Souriau UTP family mating interfaces. It is designed for seamless interoperation within the UTP ecosystem, enabling consistent mating cycles, reliable seals, and straightforward field maintenance.
UTP22DCG supports a wide operating range from -40 °C to 105 °C. This makes it suitable for outdoor installations, extreme industrial environments, and equipment exposed to temperature fluctuations without performance degradation.
Yes. The connector adheres to RoHS and REACH requirements and carries UL94 V0 flammability rating, supporting regulatory compliance across many industrial sectors and simplifying safety audits and product approvals.
Ideal for outdoor machinery, dusty or wash-down environments, and packaging lines where dust and moisture exposure is common. Its IP65 sealing protects internal contacts, reducing maintenance needs and improving uptime in harsh industrial settings.
The 1/3 Bayonet coupling enables fast, tool-free mating and unmating, which minimizes downtime during installation, maintenance, or field upgrades. It also delivers robust retention and consistent mating force, ensuring reliable performance in vibration-prone environments.
