Eaton UTP24DCG IP65 Sealed Connector - UL94 V0
Part Number: UTP24DCG
Quick Summary
UTP24DCG is a lightweight IP65 sealed connector for rugged industrial automation interfaces like control cabinets. In harsh environments, moisture ingress, dust, and temperature swings drive maintenance costs and unplanned downtime. This Eaton Souriau solution delivers reliable sealing and ingress protection while meeting critical safety standards, including UL94 V0 flammability, RoHS, and REACH compliance. The backshell uses a sealing gland and a 1/3 bayonet coupling for fast, secure mating, reducing install time on busy shop floors. With shell size 24 and a wide operating temperature range, it supports demanding applications from -40°C to +105°C, delivering long-term performance in the field. Complementary to standard cables, it enables scalable, cost-efficient connectivity in diverse industrial environments.
Product Information
Extended Description

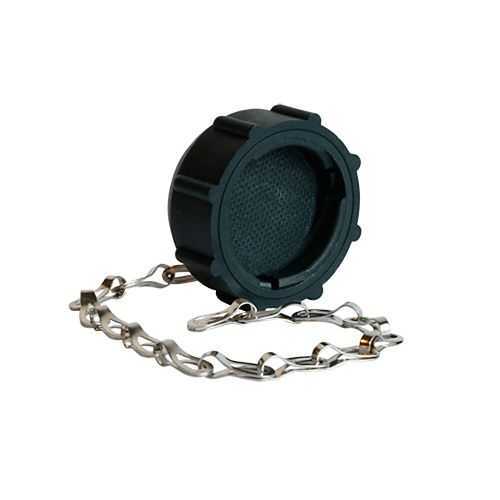

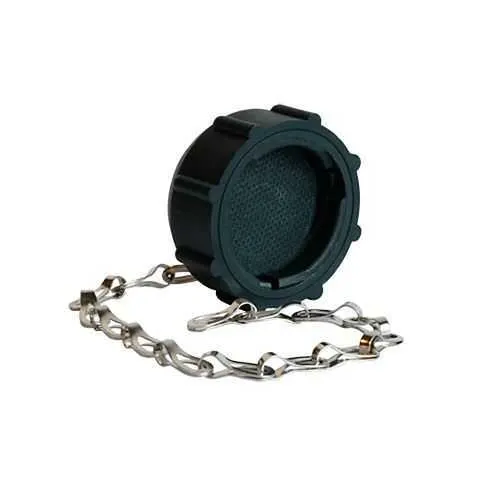

UTP24DCG Eaton: Plastic sealed receptacle dusctap, size 24; UTP24DCG
Product Name
Eaton Souriau UTP series economical lightweight IP65 connector
Catalog Number
UTP24DCG
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Backshell type
Sealing Gland
Coupling type
1/3 Bayonet
Shell size
24
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Feature: IP65 sealed design. Business impact: Protects internal contacts from dust and moisture, reducing corrosion and field failures; Application: outdoor cabinets, washdown areas, and dusty production lines. Feature: 1/3 Bayonet coupling. Business impact: Quick, reliable mating reduces installation time and rework in crowded panels; Application: control panels and modular enclosures. Feature: Backshell sealing gland. Business impact: Improves environmental sealing and reduces ingress risk during rugged operation; Application: chemical plants, outdoor sensors. Feature: Shell size 24; Operating temperature -40 °C to 105 °C. Business impact: Wide temp range enables use in extreme environments and across many equipment types; Application: CNC machines, robotics, outdoor monitoring. Feature: RoHS REACH UL94 V0 compliance. Business impact: Compliance with environmental and safety standards reduces procurement risk; Application: regulated industries with sustainability goals. Industry context: The UTP series from Souriau emphasizes lightweight, economical IP65 connectors that are compatible with a broad range of mating parts, helping integrators streamline inventory and supplier management.
Get a Quick Quote for a Eaton UTP24DCG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTP24DCG?
Enquire Now
FAQs
UTP24DCG is designed for the Eaton Souriau UTP family. It uses a sealing gland backshell and a 1/3 bayonet mating interface, compatible with standard mating receptacles in the UTP series. This reduces special cable preparations and accelerates installation while maintaining IP65 protection.
The 1/3 bayonet coupling enables quick, tool-free mating with a positive lock. This reduces installation time, minimizes misalignment, and improves vibration resistance, making it well-suited for moving equipment, robotics, and cabinet assemblies in busy manufacturing floors.
Yes. The IP65 sealing provides robust ingress protection against dust and water, while UL94 V0, RoHS, and REACH compliance support safety and sustainability. With a -40 °C to 105 °C operating range, the connector remains reliable in extreme ambient conditions.
The UTP24DCG carries UL94 V0 flame rating and RoHS/REACH compliance. The IP65 sealing rating confirms protection against dust and water ingress. These certifications help meet industry and regulatory requirements for industrial automation and equipment.
By reducing field maintenance, downtime, and changeover time through fast mating and durable sealing, the UTP24DCG lowers lifecycle costs. Its compatibility with standard UTP components enables scalable connectivity without frequent redesigns, supporting faster deployment of automation upgrades and ongoing cost containment.
