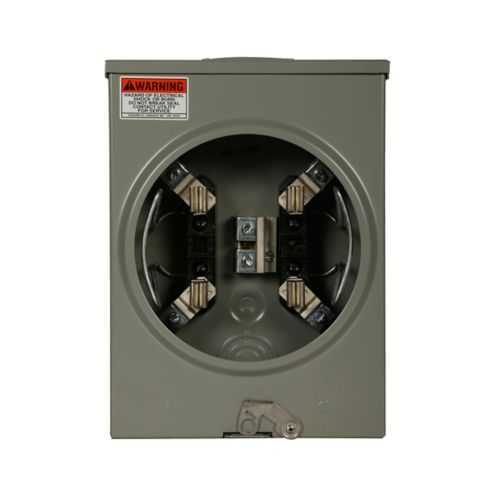

Eaton UTRS101BEPCH Meter Socket - UL Listed
Part Number: UTRS101BEPCH
Quick Summary
The Eaton meter socket is a reliable overhead solution for residential service, delivering a compact, single-position interface at 125A. For electrical teams, the goal is fast, field-robust installations with minimal recalibration, and this unit's four-jaw, ringless design helps you tighten connections without exposing live terminals. It carries UL Listed certification and regional approvals, supporting utility compliance and job-site acceptance. The 600 V rating and overcurrent protection compatibility support varied service conditions. With a compact footprint and compatible conductor ranges like #8-2/0 AWG, it streamlines installation while enabling scalable service for future upgrades.
Product Information
Extended Description
UTRS101BEPCH Eaton: Eaton meter socket, 1-pos resi service, 125A, Over, 3-5/16 inch hub open, #8-2/0 AWG, 4-jaw, 1-ph, #8-2/0 AWG, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS101BEPCH
UPC
782116200306
Product Length/Depth
3.61 in
Product Height
11.05 in
Product Width
8.22 in
Product Weight
12 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
El Paso approved
Special features
Barrel lock provisions
Type
Single-position residential service
Amperage Rating
125A
Feed type
Overhead
Number of jaws
Four-jaw
Phase
Single-phase
Line
#8-2/0 AWG
Load
#8-2/0 AWG
Number of wires
Three-wire
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Feature: 125A capacity and single-position residential service. Benefit: Provides adequate service for typical homes, enabling safe, code-compliant connections. Application: Overhead residential feeders where space and accessibility matter. Feature: Four-jaw, ringless design. Benefit: Quicker terminations and reduced risk of wiring damage during installation. Application: New construction or service upgrades in constrained panels. Feature: 600 VAC rating with overhead feed. Benefit: Supports diverse utility voltages and equipment while maintaining safety margins. Application: Commercial-residential mix sites with higher voltage equipment. Feature: Conductor compatibility #8-2/0 AWG and ground #14-#2 Cu. Benefit: Flexible wiring options with secure grounding and simplified inventory. Application: Retrofit or new services with standard feeder conductors. Feature: UL Listed and El Paso approved. Benefit: Demonstrates regulatory compliance and regional acceptance, reducing inspection hurdles. Application: Utility-grade installations and project approvals.
Get a Quick Quote for a Eaton UTRS101BEPCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS101BEPCH?
Enquire Now
FAQs
Install with four-jaw ringless connections for #8-2/0 AWG conductors on a 125A, 600V single‑phase feed. Mount in a accessible location, connect ground (#14-#2 Cu), and verify UL Listed compliance before energizing.
Yes, this meter socket is UL Listed and El Paso approved, meeting utility installation standards and facilitating inspection approvals.
Designed for line and load connections of #8-2/0 AWG with a ground path using #14-#2 Cu; supports three-wire, single‑phase residential service.
Dimensions are 3.61 in depth, 11.05 in height, and 8.22 in wide, with a product weight of 12 lb, aiding fitment in tight spaces.
Ideal for overhead residential service installations, single‑phase 3‑wire systems, and retrofit projects needing a compact, reliable UL Listed meter socket.
