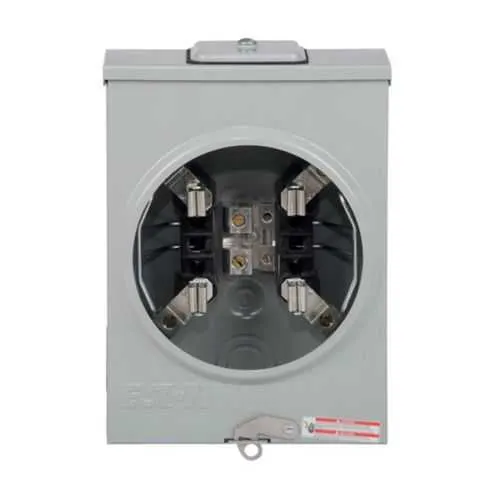

Eaton UTRS101CE Meter Socket - UL Listed
Part Number: UTRS101CE
Quick Summary
Eaton UTRS101CE meter socket provides a reliable residential service connection for overhead power feeds. In practice, contractors face tight timelines and evolving code requirements, and this unit helps simplify compliance while reducing field adjustments. UL Listed certification supports safety and reliability, aligning with standard electrical installations; the 125A, 600V rating covers common service profiles. With a ringless 4-jaw design and a 3-5/16 in hub cover plate, installation is straightforward in standard enclosures. This combination delivers predictable performance and cost efficiency for new builds and retrofit projects alike.
Product Information
Extended Description
UTRS101CE Eaton: Eaton meter socket, 1-pos resi service, 125A, Over, 3-5/16 inch hub cover plate, #8-2/0 AWG, 4-jaw, 1-phase, #8-2/0 AWG, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS101CE
UPC
786685217727
Product Length/Depth
3.61 in
Product Height
11.05 in
Product Width
8.22 in
Product Weight
7 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position residential service
Amperage Rating
125A
Feed type
Overhead
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
ME : Central Maine Power ME : Emera Maine (Bangor Hydro Electric Co./ Maine Public Service Company) MO : Empire District Electric OK : Empire District Electric FL : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) IN : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) KY : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) NC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) OH : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) SC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) NM : Public Service Company of New Mexico (PNM) SC : South Carolina Electric and Gas (SCE&G)
Line
#8-2/0 AWG
Load
#8-2/0 AWG
Number of wires
Three-wire
Hub type
3-5/16 in hub cover plate
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTRS101CE
125A residential service capability with overhead feed translates to faster, code-compliant connections for single-phase installations, reducing call-backs and service interruptions. The four-jaw design with #8-2/0 AWG conductors ensures secure, low-resistance terminations that support reliable metering and minimal voltage drop in typical urban and rural layouts. The ringless physical form and 3-5/16 in hub cover plate simplify retrofits and new-build installations by fitting common enclosure footprints without additional hardware or rework. UL Listed certification provides peace of mind for inspector acceptance and customer safety, while compact dimensions and a 7 lb weight improve handling during on-site setup. A one-year warranty from installation (or eighteen months from shipment) offers strong total-cost-of-ownership value for procurement teams.
Get a Quick Quote for a Eaton UTRS101CE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS101CE?
Enquire Now
FAQs
The UTRS101CE is designed for single-phase, overhead-fed residential service up to 125A and uses a four-jaw configuration with #8-2/0 AWG conductors. It features a 3-5/16 in hub cover plate and a ringless design, enabling straightforward upgrades or new installs in standard enclosures without specialized tooling. This compatibility supports fast field deployment and inspector-ready metering.
Key specifications include a 125A amperage rating, 600V voltage rating, single-phase operation, and a three-wire configuration. The unit utilizes four jaws to securely terminate #8-2/0 AWG conductors, with overhead feed as the feed type. It provides one meter socket, is UL Listed, and is designed for efficient, low-impedance connections in residential service metering.
The UTRS101CE is UL Listed, confirming compliance with recognized safety standards. The product specification also lists multiple utility approvals (MEG, specific state and utility entities) for various regions, indicating broad compatibility with common utility metering requirements. Always verify local utility acceptance and referenced approvals in Eaton’s product datasheets before deployment.
Consider overhead service installations with a 3-5/16 in hub cover plate and a ringless, four-jaw design for secure Cu conductors up to #8-2/0 AWG. The unit is 1-phase, 3-wire, rated at 600V, and weighs about 7 lb, facilitating single-person handling during mounting and wiring. Its 125A rating suits many standard residential services but may require service upgrades for higher demand loads.
Eaton offers a warranty of one year from installation or eighteen months from shipment, whichever occurs first, providing protection against defects and performance issues. With UL Listed certification and a compact, easy-to-install design, the UTRS101CE can reduce on-site labor time, minimize retrofit costs, and improve overall project ROI for residential metering projects.
