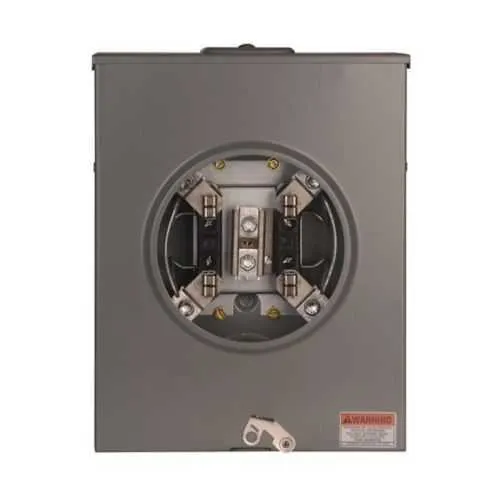

Eaton UTRS212CFLCH Meter Socket - 600V UL Listed
Part Number: UTRS212CFLCH
Quick Summary
Meter socket for residential service connections delivers safe, reliable metering up to 200A. This unit addresses common field pain points by providing a ringless, four-jaw design that supports secure grounding and reduces inspection complications. UL Listed safety certification underpins compliance, with MEG utility approvals across Duke Energy, Florida Power, Tallahassee Electric, and other utilities enabling broad deployment. The top/bottom feed, 3-5/16 in hub cover plate, and #8-250 kcmil terminals simplify installation while delivering a 600 V rating. In practice, installers gain faster, code-compliant metering suitable for both residential and light-commercial applications, with consistent performance in demanding environments.
Product Information
Extended Description
UTRS212CFLCH Eaton: Eaton meter socket, 1-pos resi service, 200A, Over/under, 3-5/16 inch hub cover plate, #8-250 kcmil, 4-jaw, 1-ph, #8-250 kcmil, Gnd conn (#14-#2 Cu), Triplex, Three-wire, Ringless, 600 Vac
Product Name
Eaton meter socket
Catalog Number
UTRS212CFLCH
UPC
782116128280
Product Length/Depth
4.36 in
Product Height
14 in
Product Width
11 in
Product Weight
9 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
Single-position residential service
Amperage Rating
200A
Feed type
Top/bottom
Number of jaws
Four-jaw
Phase
Single-phase
Utility approvals
FL : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) IN : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) KY : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) NC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) OH : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) SC : MEG (Duke Energy, Florida Power, Tampa Electric, Gulf Power, Oklahoma Gas and Electric) FL : Tallahassee City Electric
Line
#8-250 kcmil
Load
#8-250 kcmil
Number of wires
Three-wire
Hub type
3-5/16 in hub cover plate
Security
Ringless
Voltage rating
600 V
Number of sockets
1
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - UTRS212CFLCH
Feature: 200A amperage rating and 600V rating. Business Impact: Provides sufficient headroom for typical residential service loads while maintaining safety margins to prevent nuisance trips and voltage drop. Application: Ideal for single-phase, three-wire residential metering in new or retrofit installations. Feature: Four-jaw, ringless design. Business Impact: Enhances grounding reliability and reduces tampering opportunities, lowering field service calls. Application: Suitable for clean, secure meter connections in dense electrical panels and service equipment. Feature: Top/bottom feed configuration. Business Impact: Flexibility during installation saves time and reduces conduit routing constraints. Application: Compatible with various meter-riser layouts in both new builds and renovations. Feature: Hub cover plate sized at 3-5/16 in. Business Impact: Streamlines coupling with standard service conduits, reducing custom fabrication needs. Application: Faster commissioning in residential service entrances. Feature: Heavy-duty terminals for #8-250 kcmil conductors. Business Impact: Supports high-capacity service conductors with solid crimp/grip reliability, lowering loose-conductor risk. Application: Enables robust line/load connections for extended service life. Feature: Ground connection rated for Cu (#14-#2). Business Impact: Improves grounding integrity, enhancing protection against fault currents and nuisance shocks. Application: Essential for safe operation in all metering environments. Feature: UL Listed with MEG utility approvals. Business Impact: Demonstrates compliance with safety and regional utility requirements, reducing project approvals time. Application: Widely accepted in Duke Energy, Florida Power, Tallahassee Electric, and similar jurisdictions. Feature: Compact dimensions and weight (4.36 in depth, 11 in width, 14 in height, ~9 lb). Business Impact: Easier handling, faster site routing, and simpler inventory management. Application: Suitable for standard meter sockets in distributed residential feeders.
Get a Quick Quote for a Eaton UTRS212CFLCH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UTRS212CFLCH?
Enquire Now
FAQs
Yes. The UTRS212CFLCH is designed for both top and bottom feed configurations and supports a three-wire, single-phase residential service. This flexibility simplifies routing and reduces the need for additional adapters or accessories, speeding up the install while maintaining strict safety and grounding standards.
The unit is rated for 200A with a 600V maximum. It accommodates #8-250 kcmil conductors on both the line and load sides and uses a ground conductor range of #14-#2 Cu. The four-jaw design ensures robust, removable connections suitable for high-reliability metering installations.
Yes. Although primarily configured for residential service, the 200A rating, single-phase 3-wire design, and UL Listed safety certification make it appropriate for many light commercial metering scenarios where compact, reliable metering hardware is needed along with strict utility compliance.
This meter socket is UL Listed, providing a recognized safety certification for metering equipment. It also carries MEG utility approvals across multiple states, including Duke Energy and Florida utilities, which can streamline utility-permitting processes and ensure alignment with regional installation requirements.
Eaton provides a one-year warranty from installation (or eighteen months from shipment, whichever occurs first). This reduces long-term risk for field failures. The robust ringless, 4-jaw design and durable Cu/knob connections help minimize maintenance calls and replacement costs, delivering a favorable ROI over the service life.
